GPS Receiver Module Model GH-84 Discontinued Products

The Furuno GH-84 is a miniature highsensitivity,low power GPS receiver that combines a hardware measurement platform(MP) with powerful navigation software.

It delivers fast, accurate positioning data in challenging locations such as indoor environments and deep urban canyons.The GH-84 employs novel decoding algorithms, effectively achieving 44,000 correlators.

Automotive/Industrial

Features

  • Simple power supply & Powerful navigation

    The module will offer powerful navigation with supplying 3.3VDC single power supply. Small footprint enables mounting on the customers circuit easily.

  • Miniature & Lightweight

    Very small and powerful module will allow you to have excellent Furuno quality performance. Designed specifically for the handheld device market.

Specifications

GENERAL

GNSS Reception Capability
GPS L1 C/A
GNSS Reception
12ch
Update Rate
1Hz
Sensitivity
Acquisition (Hot start) : -157 dBm
TTFF (Typical)
Hot start : 2 sec
Warm start : 33 sec
Cold start : 38 sec
*Time after power-on at Ta=25°C, -128dBm, Open sky.
Supply Voltage
VCC : 3.3V ±0.3V
Power Consumption
ICC : 78mA (typical, While acquiring satellites , VCC=3.6V)
Backup Supply
Voltage : 1.8 V to 3.6V DC
Current : < 20 micro A (VCC=0V)
: < 2 micro A (VCC=3.3V)
Operating Temperature
-30°C to +85°C
Storage Temperature
-40°C to +85°C
Outer Size
23.7 mm (W) x 24.7 mm (D) x 7.4 mm (H)
Protocol
NMEA0183 /FEC Binary
Interfaces
Single Serial UART
3 Volt CMOS Digital Levels

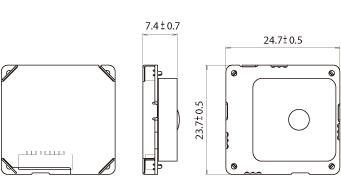

Drawing

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
