GPS Receiver Module Model GH-85 Discontinued Products

Small and powerful module equipped with the passive antenna.

The Furuno GH-85 is a miniature high-sensitivity, low power GPS receiver. It delivers fast, accurate positioning data in challenging locations such as indoor environments and deep urban canyons.

Automotive/Industrial

Features

  • 18x18mm Patch antenna integrated

  • PVT solution platform

  • Easy implemented by connector interface

  • Ultra-high sensitivity

  • 1PPS output available

  • Configurable up to 5Hz

Specifications

GENERAL

GNSS Reception Capability
GPS L1 C/A, SBAS L1 C/A
Sensitivity
GPS
Tracking: -157 dBm
Hot Start: -157 dBm
TTFF (Typical)
Hot Start: 3 sec (@ -130 dBm)
Warm Start: 33 sec (@ -130 dBm)
Cold Start: 38 sec (@ -130 dBm)
Supply Voltage
1.8VDC
Power Consumption
Acquisition Mode: 60 mA
Backup Supply
1.8 VDC
Operating Temperature
-30°C to +85°C
Outer Size
22mm x 22mm x 7.4mm (including Patch antenna)
Antenna Size: 18mm x 18mm x 4mm
Protocol
eSIP (NMEA 0183)

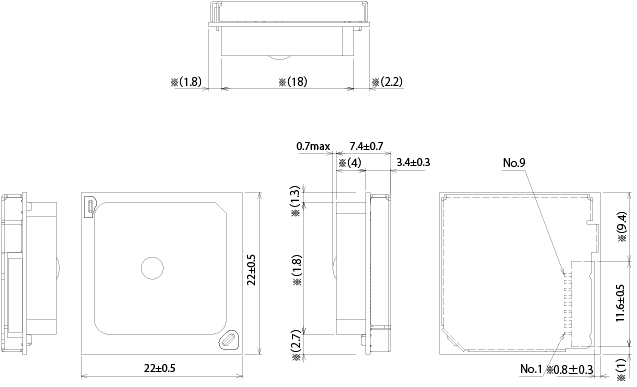

Drawing

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
