GPS Receiver Module Model GN-85F Discontinued Products

High-sensitivity, complete GPS receiver module.

The Furuno GN-85F is a miniature high-sensitivity, low power GPS receiver. It delivers fast, accurate positioning data in challenging locations such as indoor environments and deep urban canyons.

Automotive/Industrial

Features

  • PVT (Position, Velocity, & Time) in a single package solution

  • Ultra-high sensitivity (-160dBm Typical) with active antenna

  • Two Channel SBAS available

  • Quick start available in terrible reception condition by Self-Ephemeris function

  • Assist GPS function is available.

  • Available of active and passive antenna

  • Low profile, small SMT package reducing the mounting area and mounting cost.

  • Configurable up to 5Hz

Specifications

GENERAL

GNSS Reception Capability
GPS L1 C/A, SBAS L1 C/A
GNSS Reception
14 channels (GPS, SBAS)
Update Rate
1 / 2 / 5 Hz
Sensitivity
GPS
Tracking: -160 dBm
Reacquisition: -160 dBm
TTFF (Typical)
Hot Start: <2 sec (@ -130 dBm)
Warm Start: 33 sec (@ -130 dBm)
Cold Start: 38 sec (@ -130 dBm)
Supply Voltage
1.8VDC
Power Consumption
Acquisition Mode: 60 mA
Backup Supply
1.4 to 2.7 VDC / 20 μA (Typ) (VCC = 0V)
Operating Temperature
-40°C to +85°C
Package
18.0mm×21.5mm×3.0mm
Protocol
eSIP (NMEA 0183 Standard Ver 3.01)

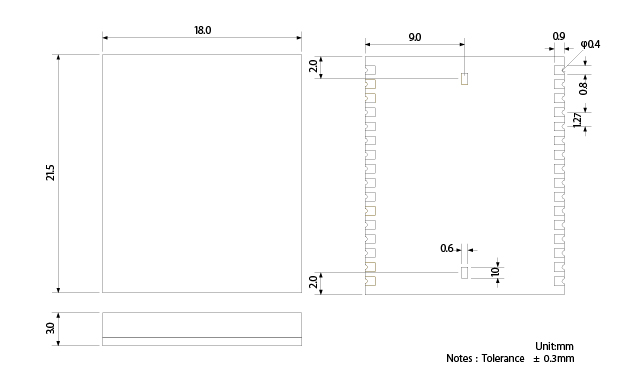

Drawing

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
