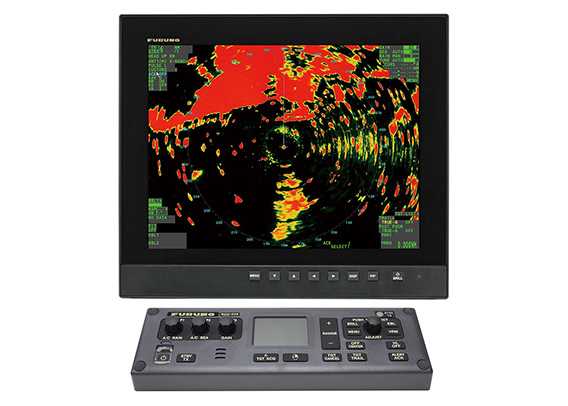

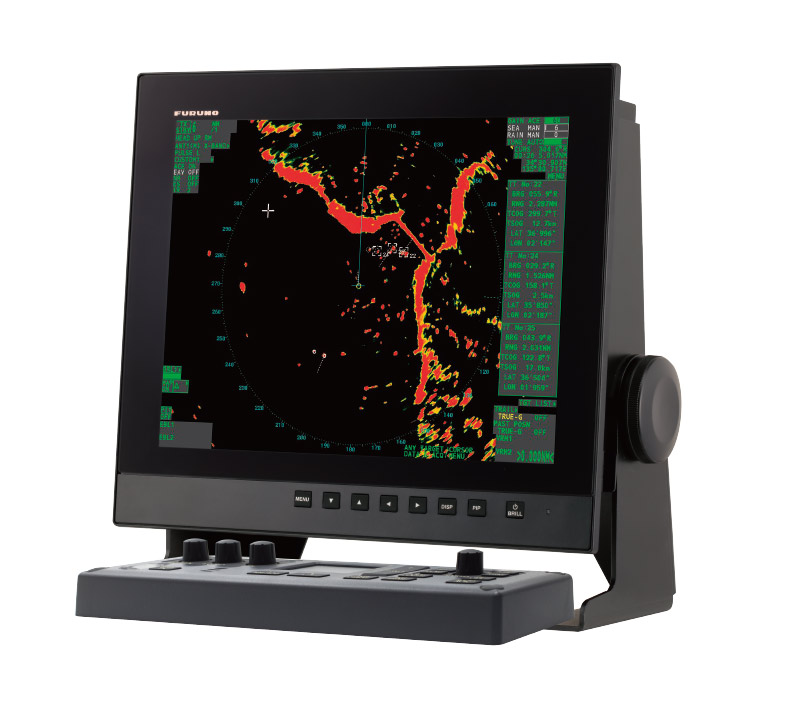

MARINE RADAR Model FAR-1523-BB

Features

• Target Analyzer™ function

  The Targe Analyzer™ function displays moving targets, stationary targets, rain, sea surface and targets closing in on your vessel in different colors. Spot hazardous targets directly, simply by their color. Target Analyzer™ can improve situational awareness, hence increasing safety at sea.


• Fast Target Tracking™ (TT)

  It only takes a few seconds after a target has been selected, for a speed and course vector to be displayed. With accurate tracking information, estimating other vessels course and speed is made easier.


• ACE function suppresses false echoes

  Quickly adjust the radar image with a single action. When Automatic Clutter Elimination (ACE) function is activated, the system automatically adjusts the clutter reduction lter and gain control according to the sea and weather conditions selected (Calm/Rough Sea/Hard Rain).



• Customize the display according to your needs

  FAR-1523-BB offers impressive customizability and freedom when it comes to display. Choose how you want echoes to be displayed so that you can maximize visibility and efficiency.



• Compact easy to use control unit

  Individual knobs for gain/rain/sea clutter suppression as well as RotoKey and a touch panel allow efficient, simple operation. An optional trackball unit as well as a regular USB mouse can also be used.



• Customizable data display for efficient and simple operation

  Whether it be a close up window of approaching targets or target information, you can customize the display freely to show the information you need at hand.



• Display Radar overlay on your connected GPS Chart Plotter

• AIS connectivity built-in

  Connect a required AIS transponder to overlay AIS targets on the radar display. Up to 40 different targets can be tracked simultaneously.

• High visibility MU-190 and MU-Display series

  19" LCD MU-190, 15" LCD MU-152HD and MU-152 are available as optional supply to fit the needs of your unique vessel. A high brightness display ensures great visibility in the most difficult of conditions.


• Scalable Ethernet Network System

  The 100 Base-TX Ethernet is utilized to network two radar systems together without the need for extra devices. For convenience, you can control both radars from any of the connected displays.


Specifications

ANTENNA

Peak Output Power

25 kW

Type

1200 mm Open (4') or 1800 mm Open (6')

Frequency

9410 MHz ±30 MHz, P0N

Beam Width (Horizontal)

1.9° (XN12A), 1.35° (XN13A)

Beam Width (Vertical)

20°

Range Scales

0.125 - 96 NM

Antenna Rotation Speed

24 rpm (RSB-0070), 48 rpm (RSB-0073)

Weight

XN12A: 25 kg
XN13A: 27 kg

DISPLAY

Display Unit

Optional supply, 1024 x 768 (XGA)

Display Mode

Head-up, STAB Head-up, North-up (TM/RM), Course-up, Stern-up

Other Mode / Functions

Target Analyzer™, Fast Target Tracking™ (TT), AIS, Echo Trails

ENVIRONMENT

Temperature

Antenna unit: -25°C to +55°C (storage: +70°C or less)
Processor unit: -15°C to +55°C

Waterproofing

Antenna unit: IP26
Processor unit: IP20 (IP22: option)
Control unit: IP22

POWER SUPPLY

Power Supply / Consumption Current

Processor unit: 24 VDC: 5.0 A max. (24 rpm), 5.6 A max. (48 rpm)
Rectifier (RU-1746B-2, optional supply): 100-115/200-230 VAC, 1 phase, 50/60Hz

Equipment List

Standard

• PROCESSOR UNIT RPU-024
• CONTROL UNIT RCU-028
• ANTENNA GEAR BOX RSB-0070
  RSB-0073
• ANTENNA RADIATOR XN12A
  XN13A

• STANDARD SPARE PARTS AND INSTALLATION MATERIALS ANTENNA CABLE (10/15/20/30 M), SPECIFY WHEN ORDERING

Option

• DISPLAY UNIT MU-152HD
  MU-152
  MU-190
• TRACKBALL CONTROL UNIT RCU-030
• AD CONVERTER AD-100
• STEPDOWN TRANSFORMER UNIT RU-1803
• AC-DC POWER PR-240
  PR-850A
• RECTIFIER RU-3423
  RU-1746B-2
  RU-3424
• RADAR SIGNAL CABLE RW-4864 1M
  RW-4864 5M
  RW-4864 10M
  RW-4864 15M
• CABLE ASSY. DVI CABLE FOR DISPLAY UNIT, DVI-D/D S-LINK 10M
• SWITCHING HUB HUB-100
• PROCESSOR UNIT IPX2 KIT OP03-238

Interconnection Diagram

Documentation

• FAR-1513/1523 Brochure
  (Last update: Sep 19, 2024)
