SATELLITE COMPASS™ (GPS COMPASS) Model SC-33

Features

• Heading Accuracy of 0.4°

• 3-AXIS speed monitoring

• Strong against multipath, High reliability

• Multi-GNSS with GPS, Galileo, GLONASS, QZSS satellite networks

• NMEA2000 certified

• NavNet TZtouch, NavNet TZtouch2 series compatible

• Works perfectly with TIMEZERO software

• Free from regular maintenance

Screenshots

•

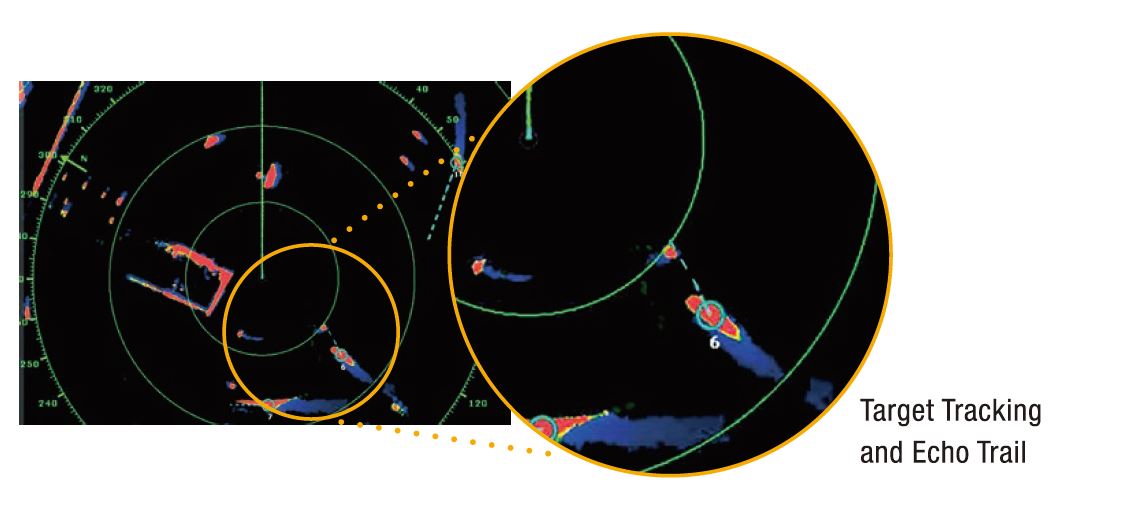

  True Echo Trail & Target Tracking
•

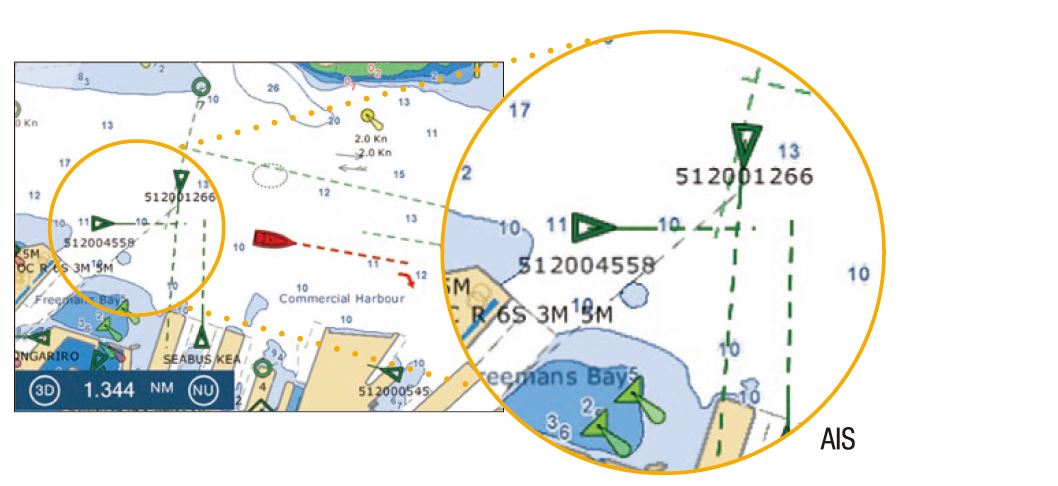

  AIS

Specifications

GENERAL

Frequency

L1 1575.42 MHz (GPS/Galileo/QZSS),
1602.5625MHz (GLONASS)

Tracking code

C/A (GPS/QZSS), E1B (Galileo), 10F (GLONASS)

Heading Accuracy

0.4° rms

Heading Resolution

0.1˚

Follow-up

45°/s

Settling time

90 s approx.

Position Accuracy

GNSS 5m approx. (2DRMS, HDOP<4)
SBAS 4m approx. (2DRMS, HDOP<4)
WAAS 3m approx. (2DRMS, HDOP<4)

Interface

Port: NMEA2000
Input: 059392/904, 060160/416/928, 061184, 061184, 065240, 126208,
Output: 059392, 060928, 061184, 065280, 126208/464/992/993/996/998, 127250/251/252/257/258, 129025/026/029/033/538/539/540/547, 130310/312/314/316/577/578/816/817/818/819/820/822/823/826,130833/834/842/843845/846/847

Temperature

-25°C to +55°C

Waterproofing

IP56

Power Supply

12-24 VDC: 0.4-0.2 (LEN: 11 @9 VDC)

Weight

2.8 kg

Equipment List

Standard

• Sensor Unit SC-33
• Cable Assembly (Selectable) FRU-NMEA-PMMFF cable (6m) for NavNet Series or FRU-NMEA-NFF cable (15m) for IF-NMEASC
• Installation materials

Option

• Interface Unit IF-NMEASC/IF-NMEA2k2
• Cable Assembly FRU-NMEA-NFF 15/30m
• Bird-Repellent Fixture
• Others

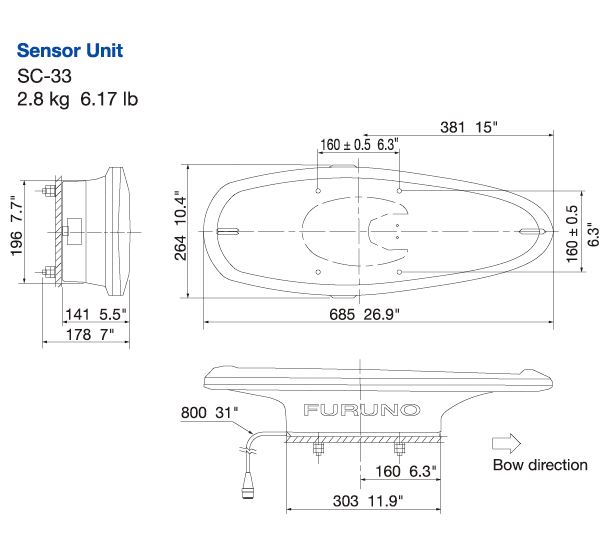

Drawing

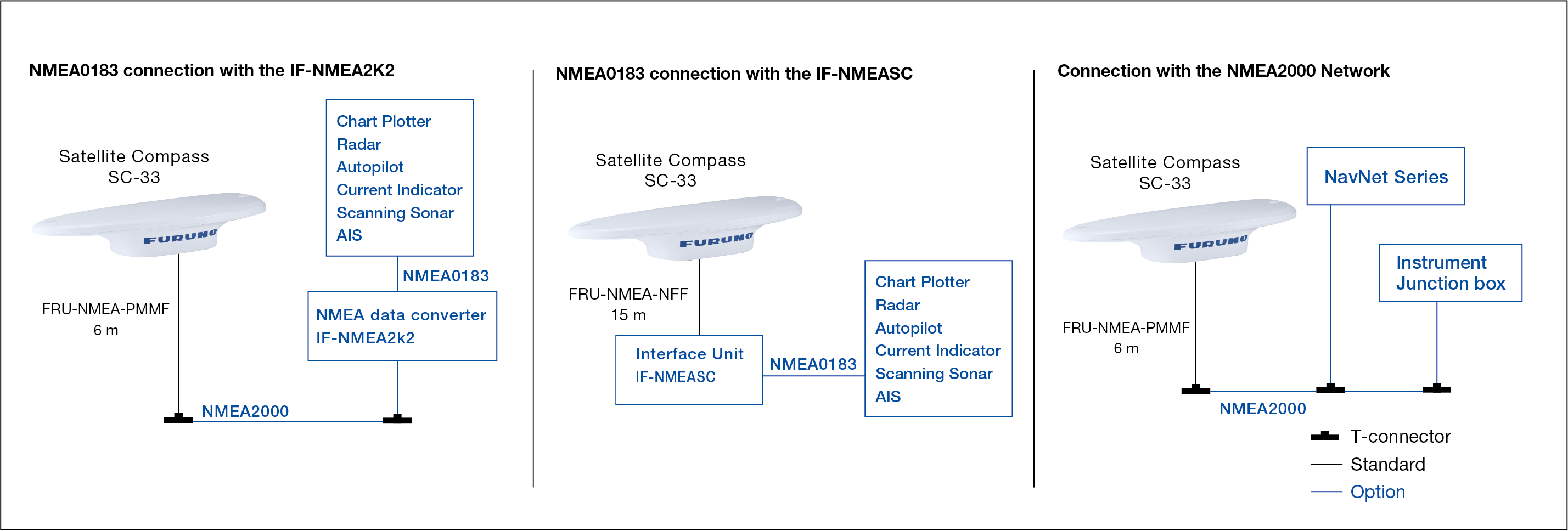

Interconnection Diagram

Software

Documentation

• NavNet TZtouch2 Brochure
  (Last update: Dec 5, 2018)
• SC-33 Brochure
  (Last update: Mar 23, 2023)

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
