SATELLITE COMPASS™ (GPS COMPASS) Model SC-130

GNSS-powered high accuracy compass

High precision and accurate heading of 0.25°rms
Perfect for Radar, ECDIS, AIS, Doppler Sonar and Autopilot

Merchant Marine Fishing Vessels Workboats
NavNet Connect CAN bus

Related Contents

Features

  • SC-130 features a Tri-sensor antenna that provides a high system accuracy for the heading of your vessel

    Provides highly accurate heading data for Autopilot, Radar, ARPA, Scanning Sonar, Current Indicator, Chart Plotter, ECDIS and Autopilot
    ●0.25°rms (with SC-130)
    Ideal for medium to large vessels navigating in crowded ports and making precise maneuvers, such as berthing.
    ●0.4°rms (with SC-70)
    Ideal for small to medium boats requiring highly accurate heading .

  • Utilizes GNSS such as GPS, Galileo and GLONASS for high precision attitude

    Eliminating the problem of not having enough satellites at hand by using multiple types of satellites

  • Provide precise data for SOG, COG, and L/L

  • Speed on 3 axis (Bow, stern and longitudinal) for safe navigating and berthing

  • Type-approved as THD, GPS and ROTI*. Complying with following requirements (For Solas Vessels)

    IMO MSC.116(73) •IMO MSC.112(73) •IMO MSC.526(13) •IMO A.694(17)
    IMO MSC.97(73) •IMO MSC.191(79) •IMO MSC.302(87) •IEC 60945 Ed.4
    IEC 62288 Ed.2 •IEC 61162-1 Ed. 4 •IEC 61162-2 Ed.1 •IEC 61162-450 Ed.1
    IEC 61108-1 Ed.2 •ISO 22090-3 Ed.2 •ISO 20672 Ed.1

    * Requires the RD-50 as a display unit.

  • Easily integrated into the existing shipboard network via Ethernet

  • Rapid follow-up rate 45°/S

    Twice the IMO high speed craft requirement, 20°/s

  • Maintenance free and no recurring cost as there are no mechanical parts

  • Super short starting time - 90 seconds

    Once the power is on, it takes about 90 seconds only to start
    (The starting time will slightly differ depending on the equipment)

  • Easy to retrofit by using existing antenna cabling

    For SC-50/55/60/110/120 (The LAN_CNV option Kit is necessary)

  • Precision Pitch/Roll data in Analog and Digital formats for vessel stabilization, SONAR, etc.

Specifications

GENERAL

Display
4.3-inch color LCD, 95.04 (W) x 87.12 mm (H)
Heading Accuracy
0.25
Heading Resolution
0.1°,0.01°,0.001° (select from menu)
Follow-up
45°/s
Settling time
90 s approx. (typical)
Position Accuracy
GPS 5m approx. (2drms, HDOP<4)
DGPS 4m approx. (2drms, HDOP<4)
WAAS 4m approx. (2drms, HDOP<4)
MSAS 7m approx. (2drms, HDOP<4)
Interface
Number of ports (junction box)
IEC61162-2: 1 port (IN: 1,OUT: 1)
IEC61162-1: 8 ports (IN: 4,OUT: 8)
External beacon input (DATA5 port): RTCM SC-104 V2.3 (RS-485), ITU-R M823
NMEA2000: 1 port
AD-10: 4 ports, for heading output
RS-485 : 1 port, for display unit connection
LAN (IEC61162-450) :2 ports Ethernet 100Base-TX, RJ45 connecter
Temperature
Antenna Unit : -25°C to +55°C (storage: -25°C to +70°C)
Display Unit/ Junction Box : -15°C +55°C
Waterproofing
Antenna Unit : IP56
Display Unit : IP22 (IP35 : option)
Processor Unit : IP20 (IP22 : bulkhead mount)
Power Supply
12-24 VDC: 2.1-1.1 A (included Antenna Unit and Display Unit)
Weight
Display Unit : 0.7 kg
Junction Box : 2.9 kg
Antenna Unit (SC-1303) : 7.1 kg

Equipment List

Standard

  • Antenna Unit SC-1303 x 1
  • Display unit SC-702 x 1
  • Junction Box SC-701 x 1
  • Installation materials

Option

  • AC/DC Power Supply Unit PR-241
  • Alarm Monitoring
    IF-2503/2550
  • Interface Unit
    IF-NMEA SC
  • Remote Display RD-50/RD-20
  • Connector (waterproof) FRU-RJ-PLUG-ASSY
  • Modular Connector MPS588-C
  • LAN_CNV Kit OP20-47/48
  • Cable assembly M12-05BFFM-010/020/060
  • Connector (NMEA) LTWMC-05BFFT-SL8001
    LTWMC-05BMMT-SL8001
    SS-050505-FMF-TS001

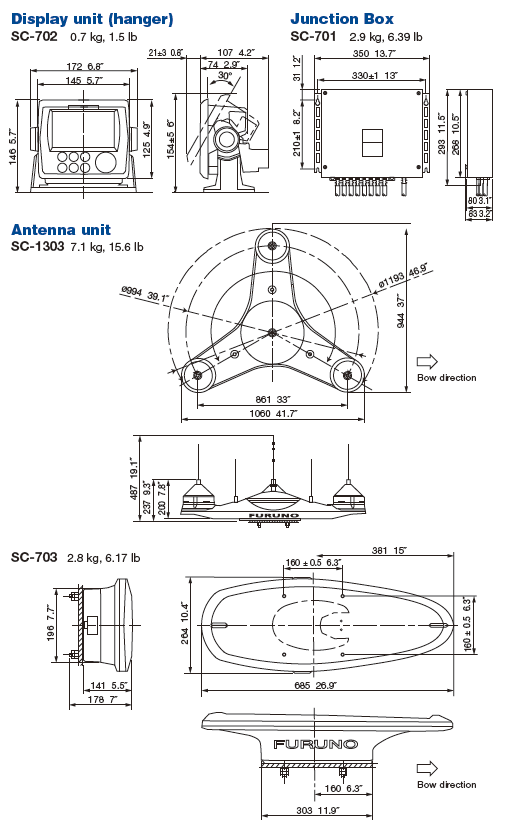

Drawing

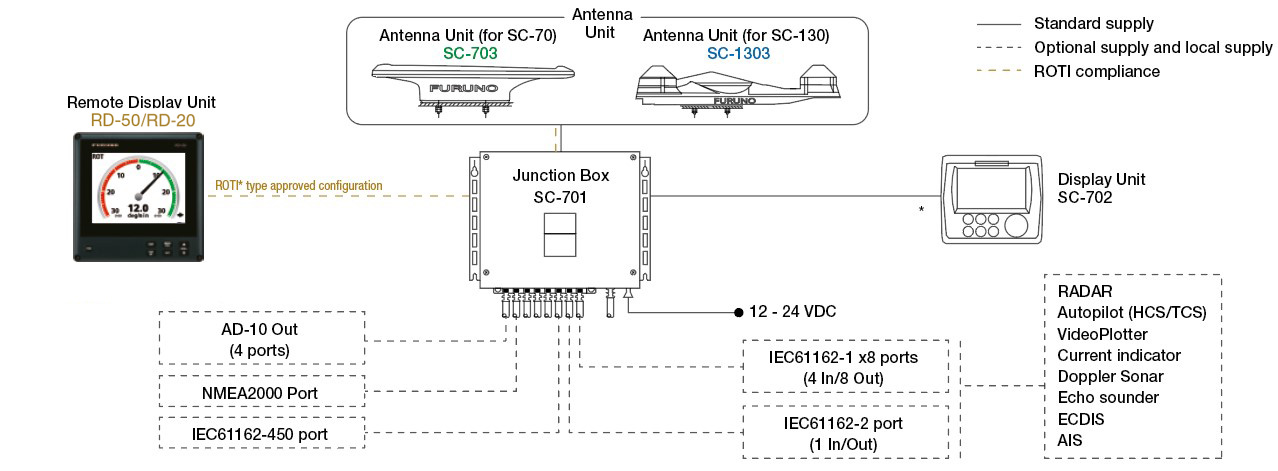

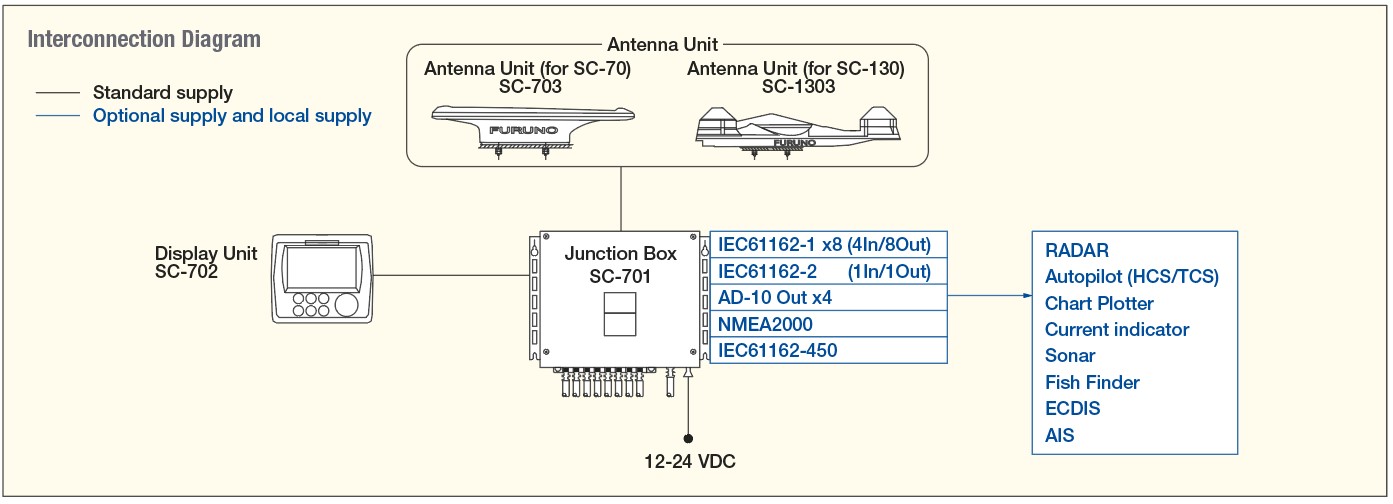

Interconnection Diagram

Display modes

THD mode

- Display the heading (HDG) of the ship

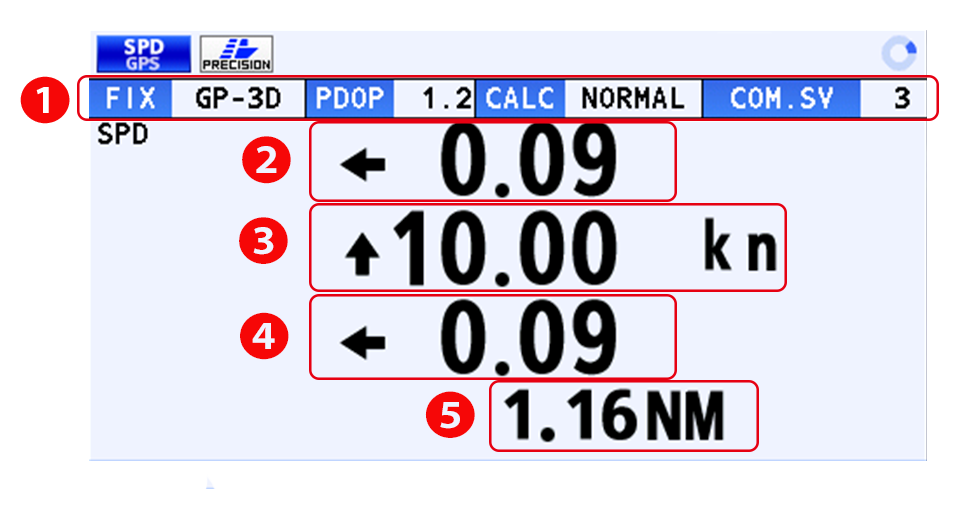

Speed mode

- 3-axis speed of the ship: Bow, Stern and longitudinal
(non-IMO type only)


①　Current selected mode (SPD or THD), integrity status and common satellite
②   Transverse speed at bow position
③   Longitudinal speed
④   Transverse speed at stern position
⑤   Distance travelled


Navigational data screen

- 3-axis speed, as well as the Heading, Rate Of Turn and
Course Over Ground can be Grasped at a glance
(non-IMO type only)


GPS integrity mode

- GNSS (GPS,Galileo,GLONASS*) satellites signal reception
including signal strength and signal to noise Ratio
- SBAS signal status
*Type approved with GPS only


ROTI mode

- Rate Of Turn Indicator displaying on the RD-50 (ROTI Display unit approved for SOLAS vessels)


Documentation

  • SC-130 Brochure
    (Last update: Jun 10, 2024)
