Multi-Purpose Display

15" & 19" Marine Display Model MU-152HD/MU-192HD

（MU-152HD/MU-192HD）

Superb quality Furuno monitors for your Furuno products

Two NEW HD monitors added to this extensive range: MU-152HD (15") and MU-192HD(19"). Both monitors feature high-brightness and high-resolution LCD for colorful video presentation even in direct sunlight.

Recreational Boats Merchant Marine Fishing Vessels Workboats
VIDEO IN (RGB-DVI)

Features

  • Two NEW HD monitors added to this extensive range

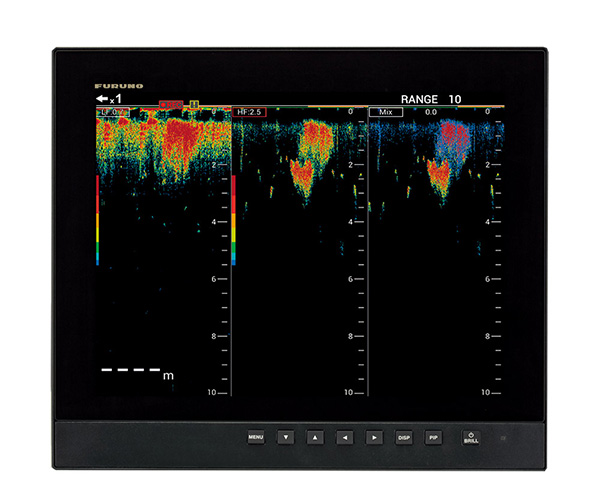

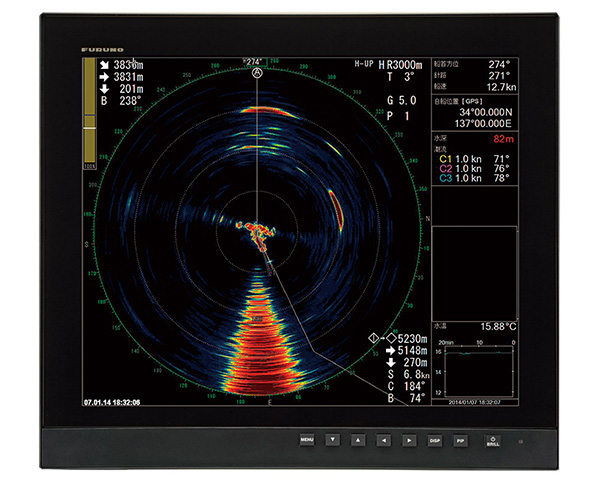

    The HD Marine Displays MU-152HD (15") and MU-192HD (19"), the latest additions to Furuno's line of high-definition monitors. Both monitors feature high-brightness and high-resolution LCD for colorful video presentation even in direct sunlight.

    Model: MU-152HD
    15" Marine Display
    1024 x 768 (XGA)

    Model: MU-192HD
    19" Marine Display
    1280 x 1024 (SXGA)

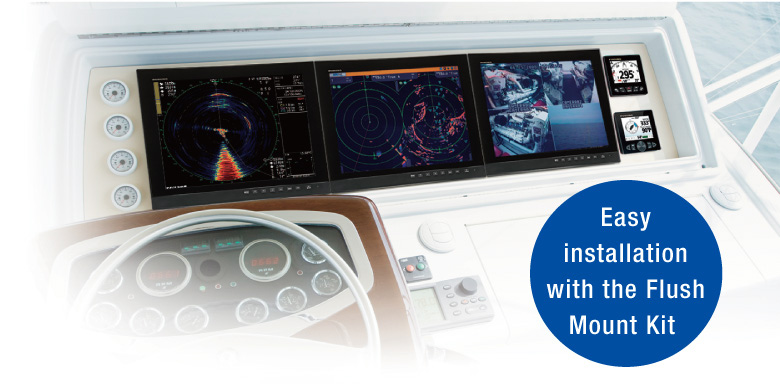

  • A nice addition for a neat and beautiful console

    For space-saving installation and additional security, flush mount installation is available for all the MU-Display series. The display unit can be fixed from either front or rear with the flush mount kit.

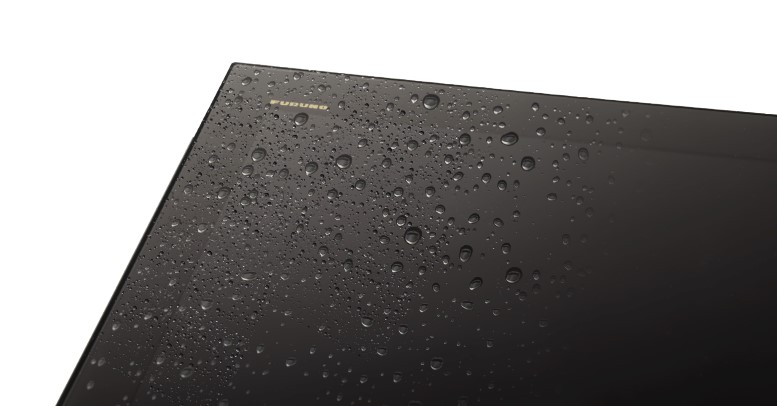

  • Waterproof and shock resistant design

    The MU-152HD/192HD has a waterproof display and is built to stand up to tough marine conditions when mounted at fly bridge console. The display can be rinsed with water for easy, worry-free cleaning.

  • Compact and lightweight

    The MU-Display series is slim in depth, light weight, and is so compact that it fits right into virtually any console.
    Its space-saving design makes optimum use of your dashboard.

Specifications

GENERAL

Display unit
MU-152HD: 15" COLOR LCD
MU-192HD: 19" COLOR LCD
Screen Resolution
MU-152HD: 1024 x 768 (XGA)
MU-192HD: 1280 x 1024 (SXGA) *Resolution from VGA to SXGA are accepted
Contrast
MU-152HD: 2500:1
MU-192HD: 2000:1
Viewing Angle
(Vertical) up/down　80° or more
(Horizontal) left/right　80° or more
Screen Brightness
Max 1,000 cd/m²
Interface
HDMI: 1 port
Analog RGB: 1 port
DVI-D: 1 port
Composite: 1 port
Temperature
−15 ℃ to +55 ℃
Waterproofing
IP56 (front panel), IP22 (rear panel)
Power Supply
MU-152HD: 12-24 VDC, 2.5 - 1.3 A
MU-192HD: 12-24 VDC, 4.9 - 2.3 A
Weight
MU-152HD: Flush Mount：4.5 kg
MU-192HD: Flush mount：6.6 kg

Equipment List

Standard

  • MU-152HD: DISPLAY UNIT MU-152HD 1 UNIT
    FLUSH MOUNT KIT (for fixing at rear) 1 UNIT
    INSTALLATION MATERIALS AND SPARE PARTS
  • MU-192HD: DISPLAY UNIT MU-192HD 1 UNIT
    FLUSH MOUNT KIT (for fixing at rear) 1 UNIT
    INSTALLATION MATERIALS AND SPARE PARTS

Option

  • CABLE ASSEMBLY (ANALOG RGB) 5 M
    10 M

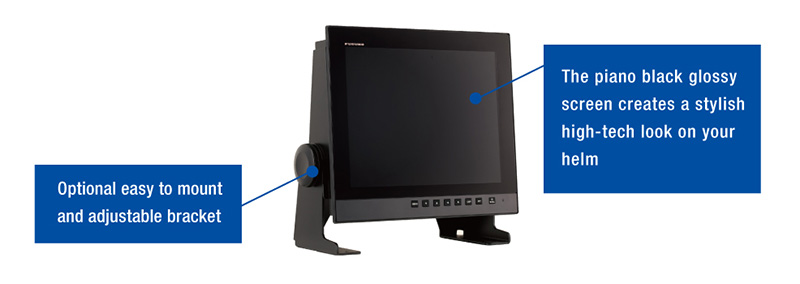

  • BRACKET ASSEMBLY (WITH KNOBS) OP26-35
  • HOOD ASSEMBLY OP26-3
  • FLUSH MOUNT KIT OP26-36

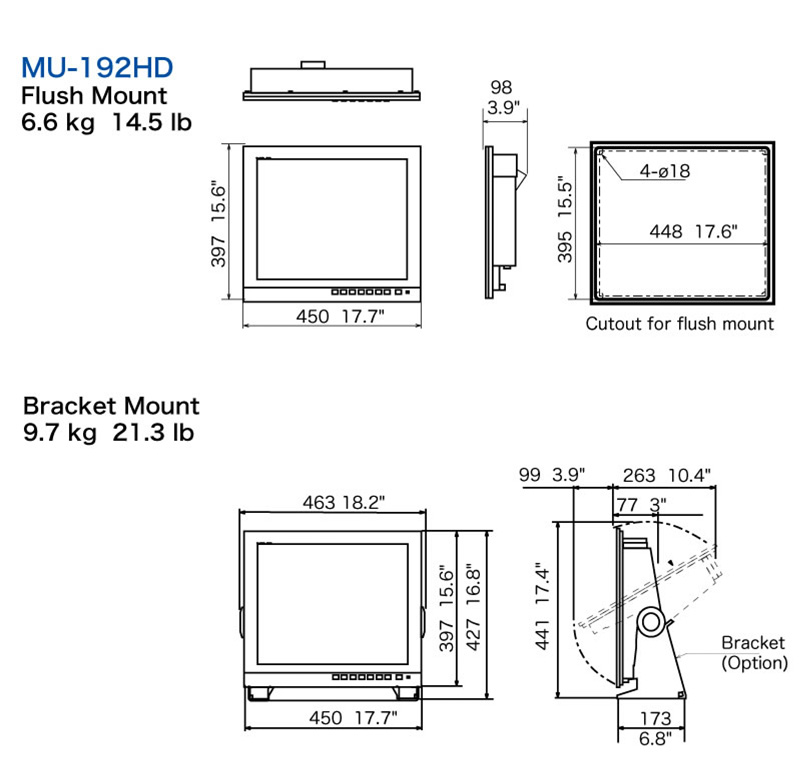

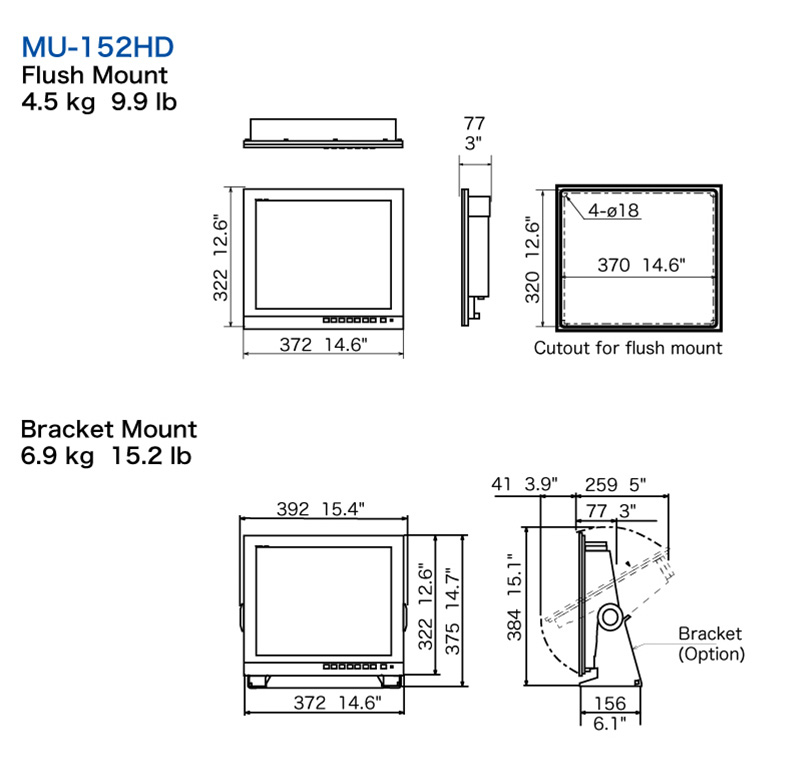

Drawing

Documentation

  • MU Series Brochure
    (Last update: Oct 1, 2024)

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
