Multi-Purpose Display

4.3" REMOTE DISPLAY Model RD-33

The new, intuitive graphic remote display lets you easily view the data you need

The RD33 is a navigational data organizer that allows the operator to select the perfect way to display data from interfaced equipment such as GPS, chartplotter, radar, fish finder, autopilot, instruments and other sensors including engine information. The high contrast, color 4.3" LCD may be installed in a compact space, remote from its sources. The screen is impressively bright, remarkably crisp and easy to read. Various display modes are available including Speedometer, Highway and Text. The text mode presents up to six of the most necessary types of data. The display layout can be customized for your specific needs.

Recreational Boats Fishing Vessels Workboats
NavNet Connect CAN bus

Features

  • 4.3" sunlight viewable color LCD (Brightness: 700 cd/㎡ typical)

  • Enhanced data legibility thanks to large characters and high resolution display

  • Customizable display format from full-screen to a 6-way split screen presentation

  • Supports both CAN bus and NMEA0183 interfaces

  • Two independent CAN bus input and output ports incorporated for daisy chain networking

  • Internal NMEA0183/CAN bus conversion capability available

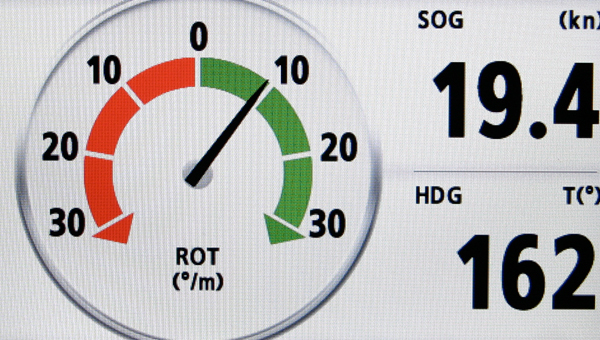

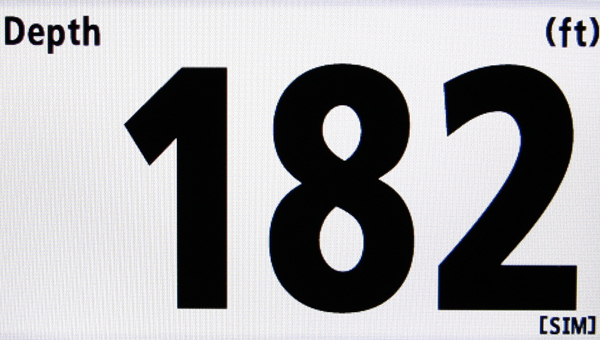

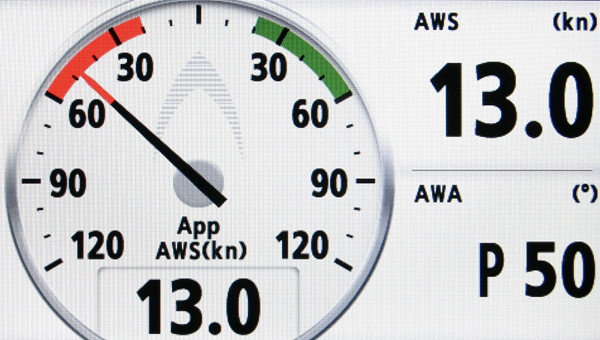

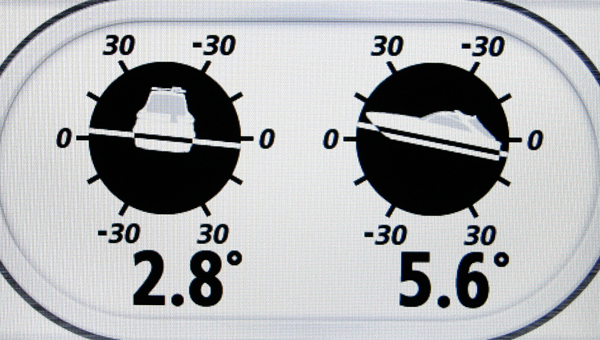

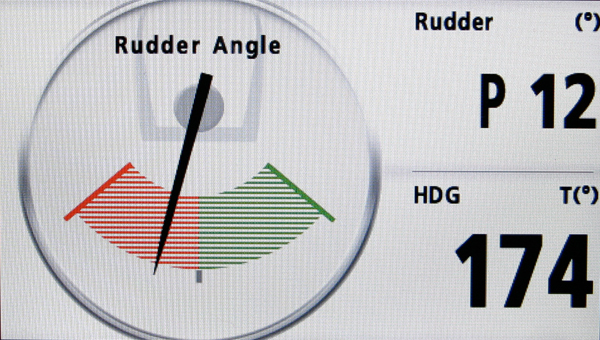

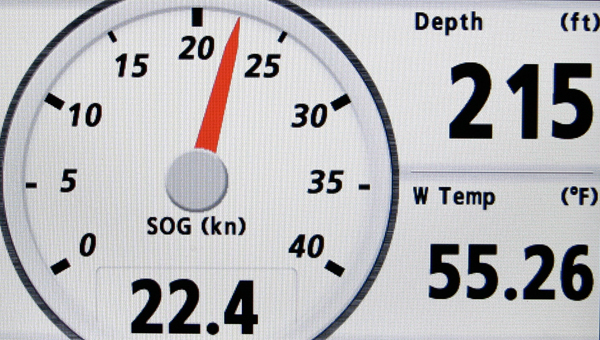

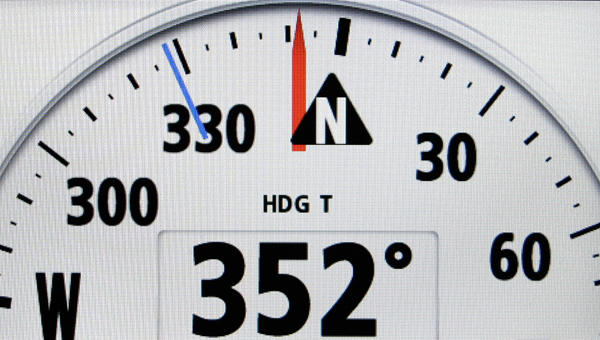

Screenshots

Specifications

GENERAL

Display unit
4.3" color LCD
Screen Resolution
480 x 272 (WQVGA)
Screen Brightness
700 cd/㎡
Temperature
−15 ℃ 〜 +55 ℃
Waterproofing
IP56
Power Supply
15 VDC:LEN6 (CAN bus)
12-24 VDC:0.2-0.1A (Non CAN bus)
Weight
Flush mount：0.59 kg
Bracket mount：0.7 kg

Equipment List

Standard

  • REMOTE DISPLAY RD-33-E
  • 6M CABLE
  • HARD COVER
  • INSTALLATION MATERIALS AND SPARE PARTS

Option

  • JUNCTION BOX FI-5002
  • DAISY CHAIN CABLE ASSY 0.3 M, 1 M, 5 M, 10 M, 20 M
  • NMEA2000 LIGHT CABLE ASSY 1 M, 2 M, 6 M
  • SIGNAL CABLE ASSEMBLY 2 M, 5 M, 10 M, 15 M

Interconnection Diagram

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
