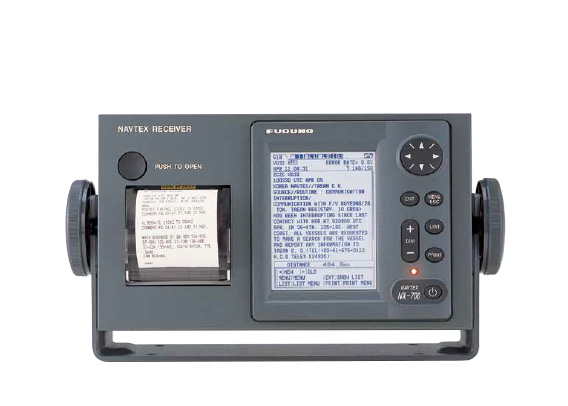

NAVTEX RECEIVER (with printer) Model NX-700A

Features

• Full compliance with IMO Resolutions and IEC Testing Standards

  IMO Resolutions	A.694(17) MSC.148(77) MSC.302(87) MSC.430(98)
  IEC Testing Standards	60945 Ed. 4.0 61097-6 Ed. 2.0 61162-1 Ed. 5.0 61162-2 Ed. 1.0 62288 Ed. 2.0 62923-1 Ed. 1.0 62923-2 Ed. 1.0

• Dual channel reception, 518 kHz and either 490 or 4209.5 kHz, simultaneously

• Incorporates a printing device (NX-700A) or a dedicated display device with printer output (NX-700B)

• 200 message of average length 500 characters can be stored in nonvolatile memory

• Incorporates a preamp within a lightweight, compact antenna for reliable, uninterrupted reception

• Display messages on a clear 5" silver bright LCD

• Low power consumption

• NAV data display acts as NMEA repeater for GPS or instruments

Screenshots

•

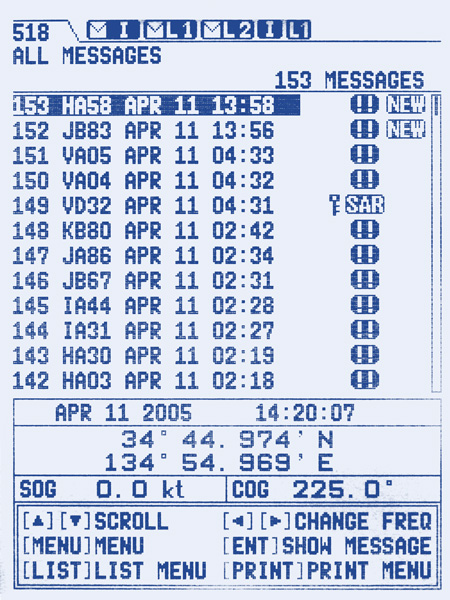

  MESSAGE INBOX
•

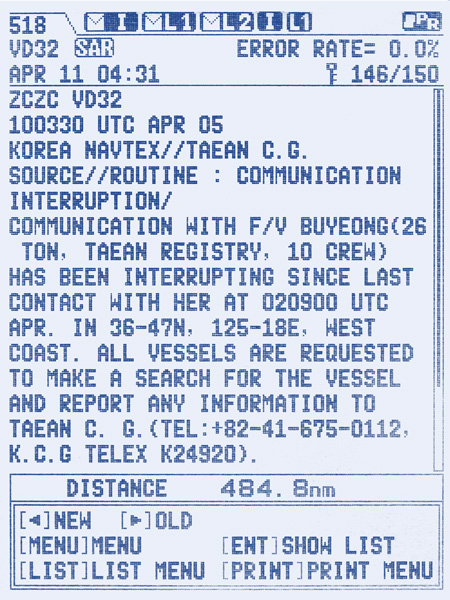

  MESSAGE DISPLAY

Specifications

GENERAL

Receiving Frequency

518 kHz and 490 kHz or 4209.5 kHz, receive both frequencies simultaneously

Mode of Reception

F1B

Sensitivity

2µV e.m.f. (50 ohms), 4% error rate

Message Capacity

200 messages x 2 channels (100,000 characters x 2 channels)

Waterproofing

Antenna Unit: IP66
Receiver Unit: IP20
Display Unit: IP20

Power Supply

12-24 VDC: 1.5-0.8 A

Weight

3.3 kg 7.3 lb

INTERFACE

Input

IEC61162-1/-2:
ACK, ACN, CRQ, GGA, GLL, GNS, HBT, NRM, RMC VBW, VHW, VTG, ZDA, PFEC

Output

ALC, ALF, ALR, ARC, HBT, NRM, NRX

Equipment List

Standard

• DISPLAY UNIT NX-700A
• RECEIVER UNIT NX-7001
• ANTENNA UNIT NX-7H
• STANDARD INSTALLATION MATERIALS
• STANDARD ACCESSORIES
• STANDARD SPARE PARTS

Option

• MAST MOUNTING KIT CP20-01111
• CABLE ASSEMBLY DSUB25P-DSUB25P-3M / DSUB25P-DSUB25P-5M / DSUB25P-DSUB25P-10M / DSUB25P-DSUB25P-15M
• L-ANGLE MOUNTING BASE NO. 13-QA310
• RIGHT ANGLE MOUNTING BASE NO. 13-QA330 (300)
• HANDRAIL MOUNTING BASE NO. 13-RC5160
• ANTENNA CABLE EXTENSION KIT (10/20/30/40/50 M) OP04-2 10/20/30/40/50 M
• FLUSH MOUNT KIT OP08-19
• AC/DC POWER SUPPLY UNIT (110/220 VAC -> 24 VDC) PR-241
• ARMOURED COAXIAL CABLE (30/40/50 M) RG-10/U-Y 30/40/50 M
• RECORDING PAPER (57MM X 30M) TP058-30CL

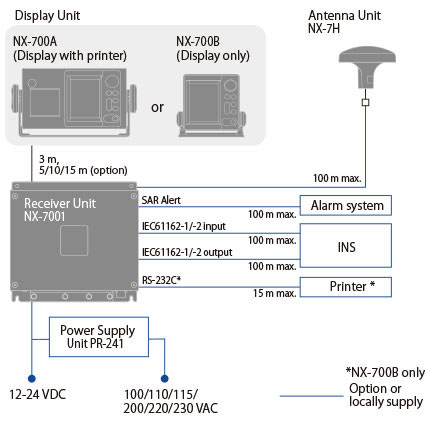

Interconnection Diagram

Documentation

• NX-700A, NX-700B Brochure
  (Last update: Mar 23, 2023)
