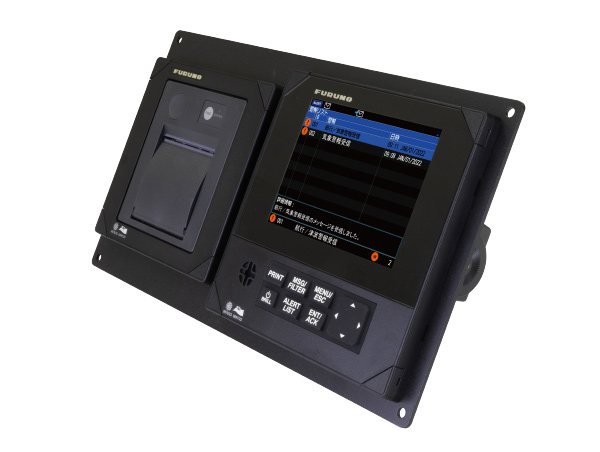

NAVTEX RECEIVER Model NX-900 NEW

Features

• Prevention function for important messages

  If a SAR message (Search and Rescue information) is received:Regardless of the alarm setting, it will sound an alarm and immediately display the content after receiving it.

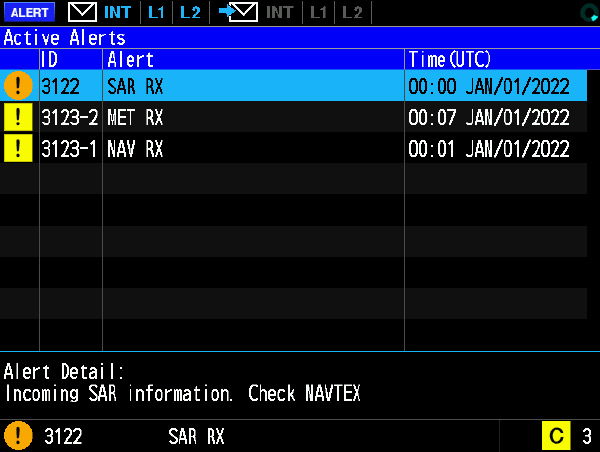

  In the alert list, you can display alerts in order of priority at the time of confirmation.

• Display messages on a clear 5.7" color TFT LCD

  The adoption of a 5.7-inch color LCD enhances visibility and operability with a wide viewing angle.
  The casing design has also been completely revamped, so that it blends in harmoniously with other Furuno equipment.



• Highly demanded self-test function for maintenance and inspection

• Improved capabilities thanks to additional interfaces

  Now features 2 IN/OUT serial ports as well as a LAN port.

• Received messages can be stored in memory

  200 message of average length 500 characters can be stored in nonvolatile memory.

• Full compliance with IMO Resolutions and IEC Testing Standards

  IMO Resolutions	A.694(17) MSC.36(63) MSC.97(73) MSC.148(77) MSC.302(87) MSC.430(98) MSC.508(105)
  IEC Testing Standards	61097-6 Ed.2.0 60945 Ed.3.0/Ed.4.0 61162-1 Ed.5.0 61162-450 E.2.0 62923-1/-2 Ed.1.0 62288 Ed.3.0

Screenshots

•

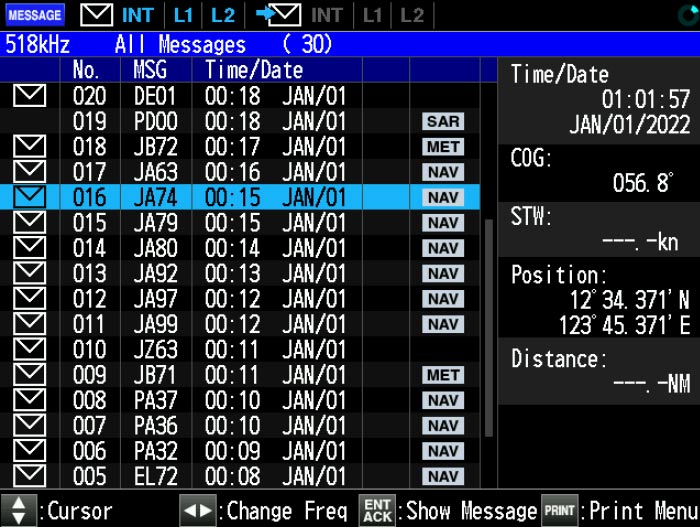

  Message list
•

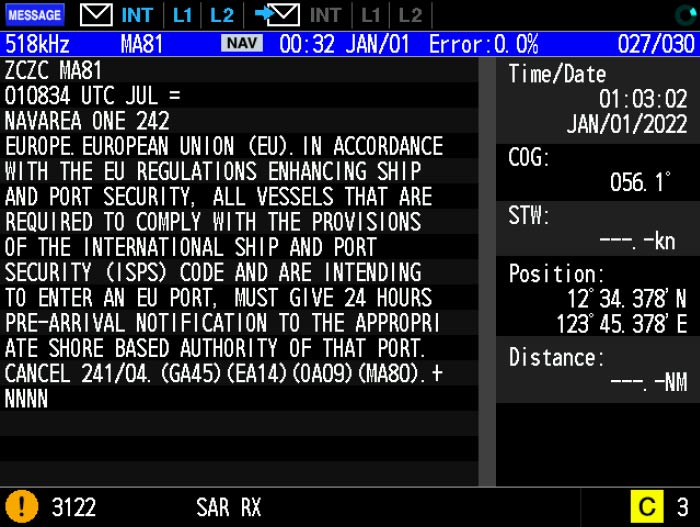

  Details of the message

Specifications

GENERAL

Receiving Frequency

518 kHz, 490 kHz, 4209.5 kHz
Receiving three frequencies simultaneously

Class of Emission

F1B

Sensitivity

-107 dBm input, error rate: 4% or less

Screen type

5.7-inch color TFT LCD

Resolution

640 × 480 dots (VGA)

Message Capacity

500 characters with 200 messages x 3 channels

Alert Category

Navigational warning, Meteorological warning, Search and rescue information, Printer error

Waterproofing

Main unit, Junction box, Printer IP20
Antenna unit IP56

Power Supply

Power supply voltage: 12-24 VDC, Current consumption: 0.7-0.35 A(main unit only)

Weight

Main unit: 1.2 kg 2.6 lb, Antenna unit: 0.48 kg 1.0 lb

INTERFACE

Serial

2ports, IEC61162-1 Ed. 5, 4800 bps

LAN

1port, Ethernet, 100base-TX
Auto MDI/MDIX, IEC61162-450 Ed.2

RS-232C

1port for printer

Contact Closure

1port for alert

Equipment List

Standard

• DISPLAY UNIT NX-900
• ANTENNA UNIT NX-9HE
• STANDARD INSTALLATION MATERIALS
• STANDARD ACCESSORIES
• STANDARD SPARE PARTS

Option

• JUNCITON BOX IF-900
• PRINTER PP-900
• THERMAL PAPER TP058-30CL
• FLUSH MOUNT PANEL OP08-22
• AC-DC POWER SUPPLY UNIT PR-241
• MAST MOUNTING BRACKET CP20-01111
• COAXIAL CABLE
• CABLE ASSAMBLY

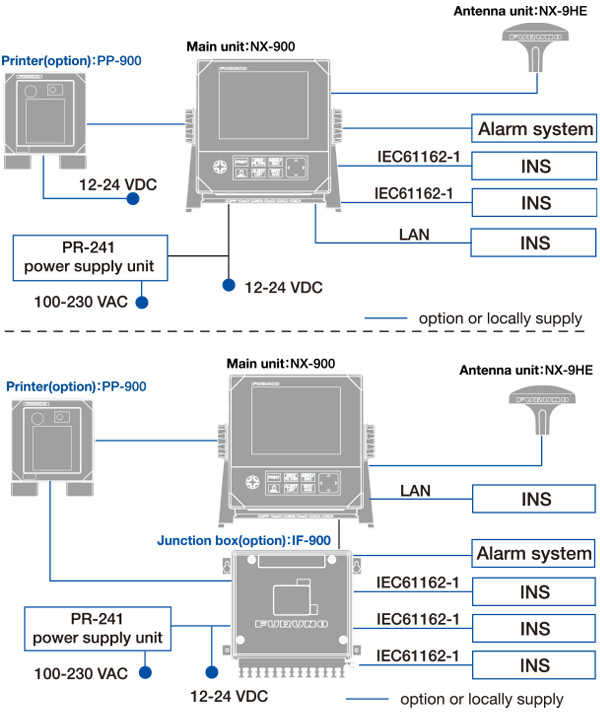

Interconnection Diagram
