FULL-CIRCLE SCANNING SONAR Model CSH-10 NEW

Stable detection performance even in rough seas with standard motion sensor！

The Full Circle Scanning Sonar CSH-10 detects 360-degree around your ship instantly, making it easy to grasp various undersea situations such as schools of fish, the seabed, and purse seine net. The 85 kHz high-frequency transmission provides the enhanced detection performance to distinguish fish from the bottom and other underwater structures. With the sharp beam width, it is effective for detecting schools of fish near the surface. In addition, Furuno’s unique beam stabilization technology, which is equipped with the motion sensor as standard, enables stable image even in rough seas.

Fishing Vessels
Black Box VIDEO OUT

Related Contents

Features

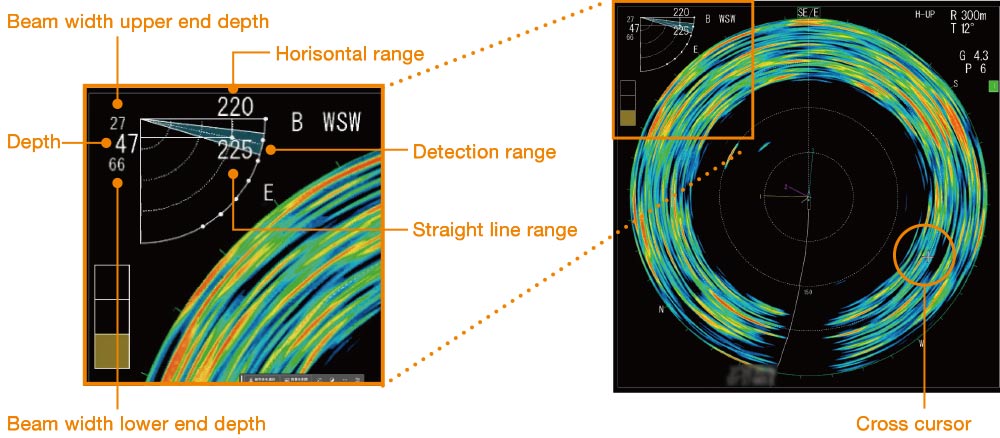

  • New “Tilt Indicator”

    A tilt indicator has been added to easily see.

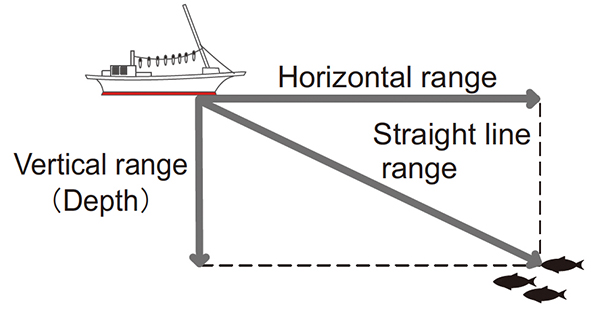

    Tilt angle, Linear/Horizontal/Vertical distance to cursor, Beam detection range, and Beam width top & bottom depth are displayed, allowing intuitive recognition of the echo location.

  • Detection range up to an incredible 900 meters (over 2,900 feet)

    The detection ability of schools of fish and structures from a greater distance increase than ever before.

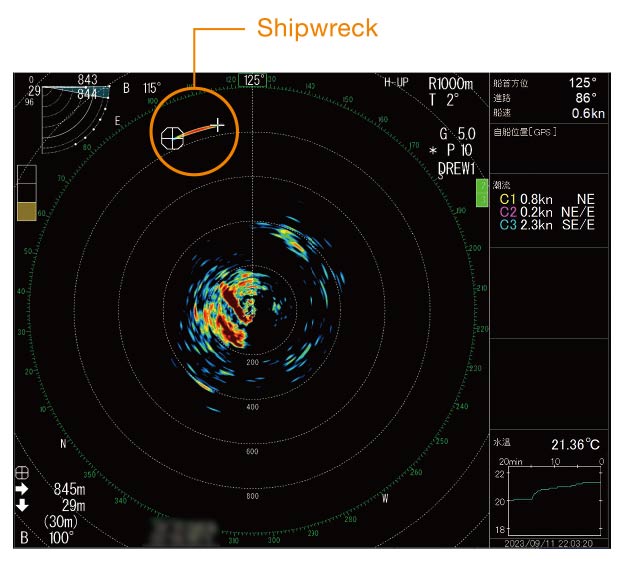

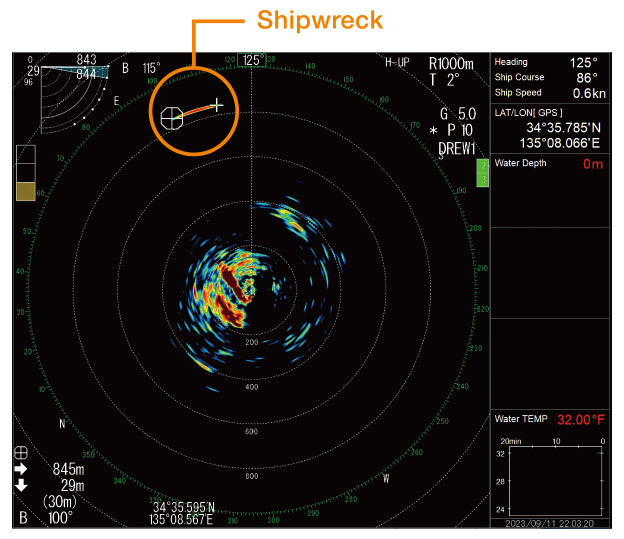

    You can see the shipwreck image captured about 850 m away in the screenshot below. Thanks to the inclusion of the motion sensor, the performance of long range detection has improved by about 20% compared to the previous model.

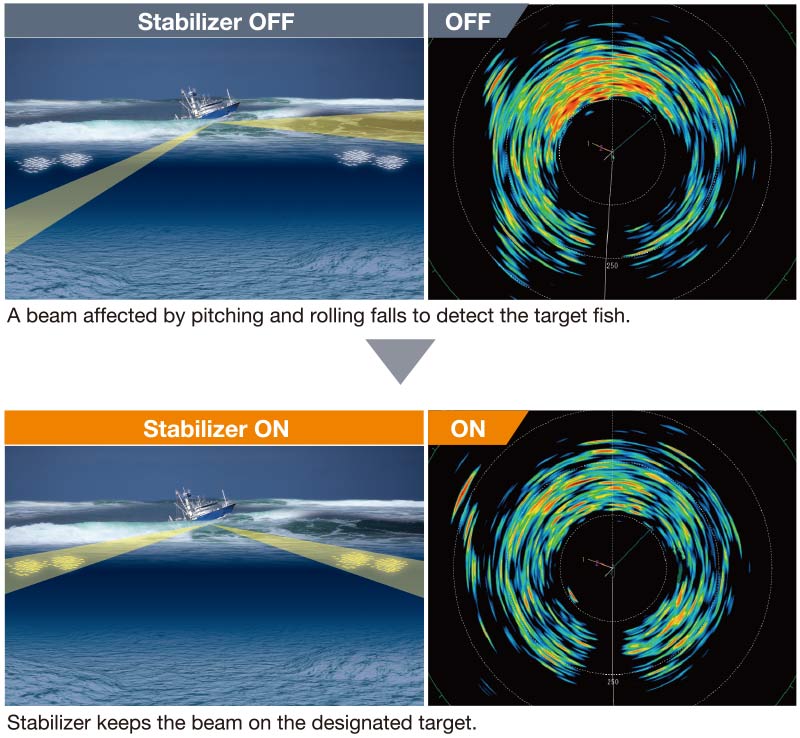

  • “Beam stabilization” for clear and stable images in rough seas

    The CSH-10 comes equipped with motion sensor as standard, and Furuno’s unique beam stabilization technology automatically adjusts the beam angle to a specified angle to correct the fluctuation of the detection beam.
    The transmitter’s transmitting and receiving beams can be stabilized independently, allowing stable detection of shallows and schools of fish even in rough weather.

  • Superior resolution for more accurate underwater imaging

    Furuno’s unique signal processing technology, Auto Filter function, provides clearer images with less noise. Not only does the Beam Stabilization function provide stable capture, but the image expression with this excellent resolution is very useful for identifying schools of fish and underwater structures.

  • “Fish estimate mark” to catch information about schools of fish

    Utilizing the Fish estimate mark function, you can estimate the size of two schools of fish. This will be useful you to decide which schools of fish is beneficial for your operation.
    * Requires vessel speed, course and heading data

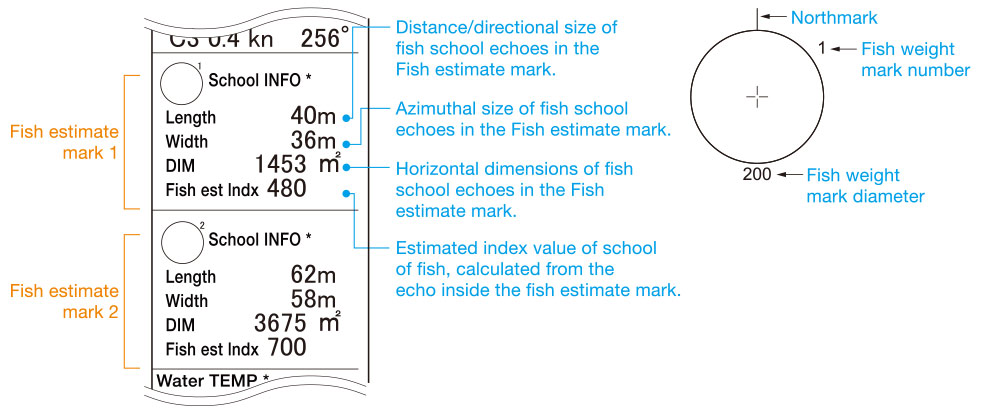

    When a fish estimate mark is entered, information about the school is shown on the data display area. The school of fish information will show the length, width, area, and Estimated index value of school of fish.*
    * The Estimated index value of school of fish is calculated from the area of the school of fish echo displayed within the fish abundance mark.

  • Track schools of fish! “Target lock” function*

    Automatically track schools of fish while calculating their speed and direction. Also display the distance and depth from the vessel to the school.
    It is also possible to track a fixed position such as a sea current.
    * Requires vessel speed, course and heading data.

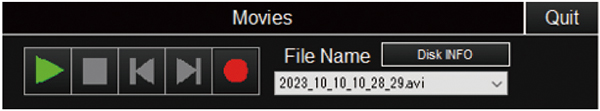

  • “Echo data recording and playback function” is useful for recording and reviewing

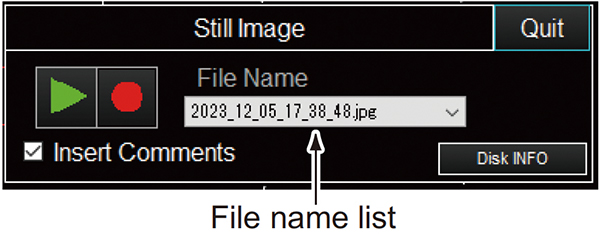

    You can save screenshots for future viewing as images or videos. You can choose to save them to the built-in memory or an external storage device*. Saved data can be easily played back from the menu screen.
    * Option

  • Intuitive new control unit

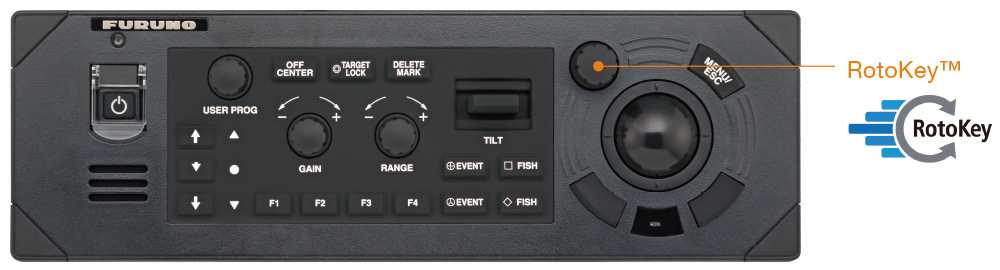

    The control unit is smaller than the previous model, making it easier to install. In addition to the popular function keys, tilt lever, sensitivity/range knob called RotoKey™, and large trackball are available.


    Control Unit
    Model: SCU-002

  • Control the CSH-10 from your ship deck (Optional)

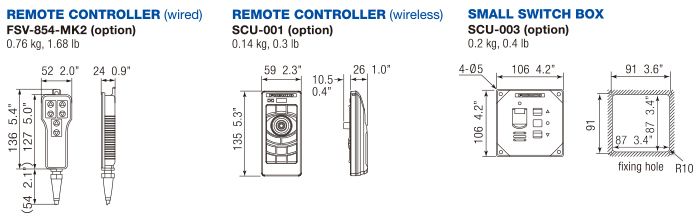

    You can easily set the range, tilt angle, and sensitivity from deck. Two types of remote controller are available: wired and wireless. Up to four wireless remote controller can be used via Bluetooth connection. We have also added a new small switch box to our lineup, which consists of only the power button, up/down button, and speaker, making it possible to control the up/down movement of the transducer from a distance.

    Remote controller (wired)
    Model: FSV-854-MK2
    Remote controller (wireless)
    Model: SCU-001
    Small Switch Box
    Model: SCU-003

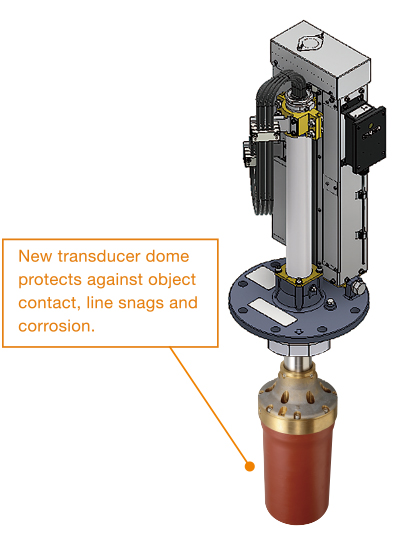

  • Adopts a “transmitter dome”!
    Improved usable speed of the “up-down device”!

    Two types of Hull Units are available, with a 400 mm and 600 mm stroke. Increasing the speed of lifting transducer function achieves a lifting/lowering time of 7 seconds with a 400 mm stroke and 10 seconds with a 600 mm stroke.
    The usable ship speed is 20 kn in normal and 18 kn in operation, improved 2 kn each from the previous model*. For easy replacement of the Hull Unit, the size is compatible with the CSH-5L/CSH-8L Mark-2.
    * If you are installing this on a high-speed vessel (vessel capable of traveling at 25 kt or more), please install a fin in front of the storage tank. For small FRP vessels, please use the optional fairing

Specifications

General

Scanning
Full digital beam forming
Frequency
83.5 kHz (selectable between 81.5 and 85.5 kHz)
Basic Range
50、100、200、300、400、500、600、700、800、900、1000、1100、1200、1400、1600、2000 m

Display Unit

Pixel number
1280 x 1024 (SXGA)
Colors
32 colors (sonar pictures), 6 colors (marks)
Orientation
Head-up, North-up* and Course up*
* Sensor required
Additional functions
Interference rejecter, Echo average, Noise limiter, Signal level, Automatic target tracking, Auto-retraction, Fish school alarm

Transceiver Unit

Pulse Length
0.5 to 20 ms

Hull Unit

Raising/Lowering time
7 s (400 mm travel), 10 s (600 mm travel)
Allowable Ship's Speed
20 kn (18 kn for raise/lower operation)
Transducer Travel
400 mm or 600 mm

Power Supply

Processor Unit
12-24 VDC: 4.0-2.0 A
Transceiver Unit
24 VDC, 7.2 A max
Hull Unit
24 VDC, 10 A max

Environment

Temperature
Processor/Transceiver unit: -15℃ to +55℃
Transducer: -5℃ to +35℃
Hull Unit: 0℃ to +55℃
Control Unit/Small Switch Box/Remote Controller: -15℃ to +55℃
Relative humidity
93% or less at +40℃
Waterproofing
Transducer: IPX8
Control Unit: IP22 (tabletop mount), IP25 (flush mount)
Hull Unit: IPX2
Remote Control Unit: IPX4 (FSV-854-MK2), IP56 (SCU-001)
Small Switch Box: IP56 (front), IP22 (rear)

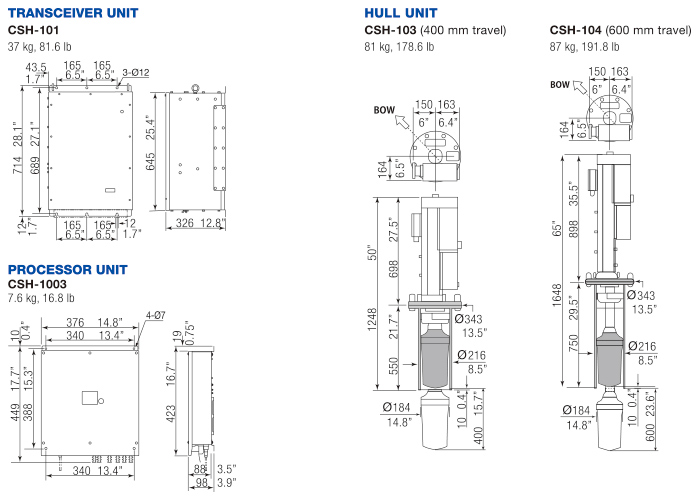

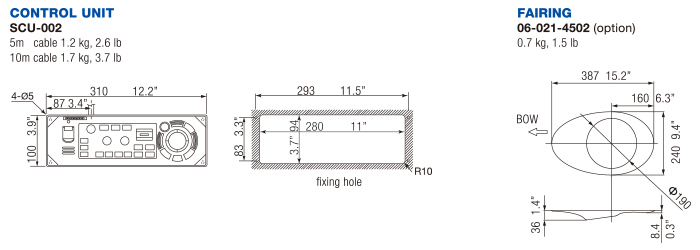

Drawing

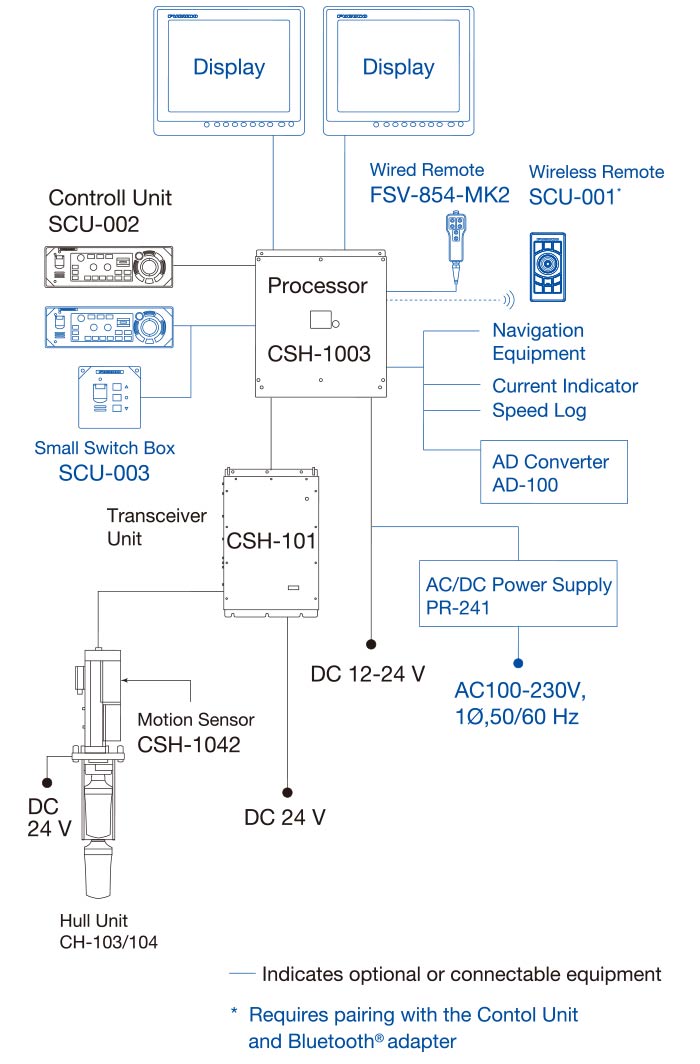

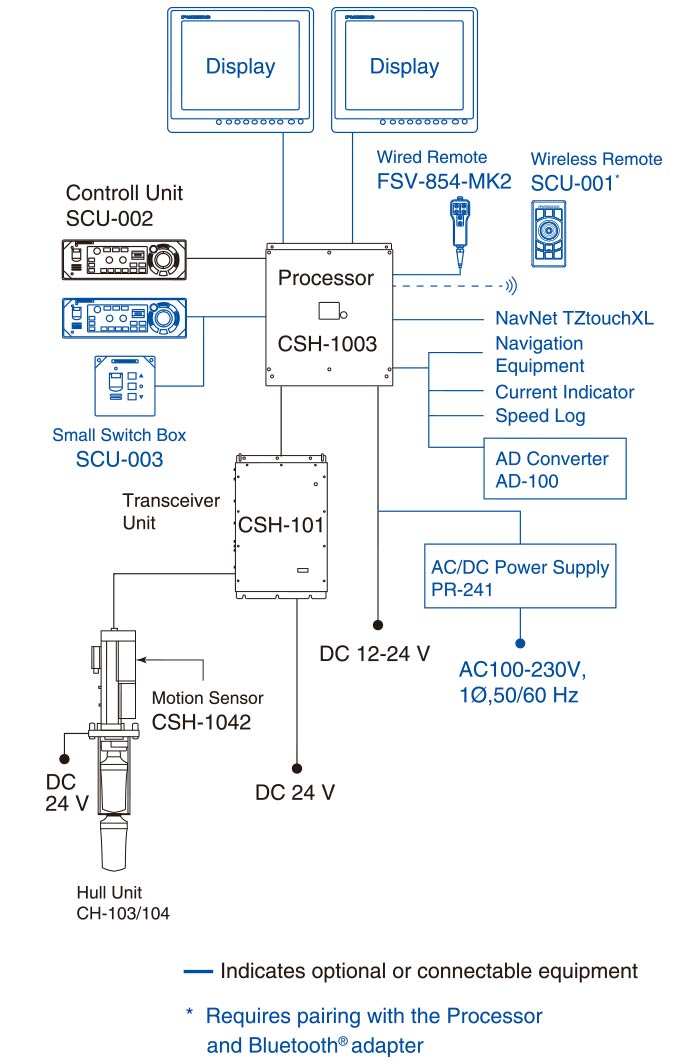

Interconnection Diagram

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
