12.1" COLOR LCD SOUNDER Model FCV-1150

High performance 12.1 LCD digital fish finder delivers super clear view of fish targets!

The FCV-1150 is a color digital sounder designed for a variety of professional fishing operations. It’s high-brightness color LCD with AR coated glass filter provides superior, glare-free viewing even in direct sunlight.

Recreational Boats Fishing Vessels Workboats
NavNet Connect FURUNO Digital Filter ACCU-FISH™ Auto Tuning (Sensitivity) Ethernet Plug ＆ Play

Related Contents

Features

  • 12.1 LCD with AR coated glass filter and anti-polarized sunglass filter

  • Post-processing gain control applies changes to gain setting to all existing returns on the display

  • White Edge bottom discrimination

  • Available Heaving Compensation provides stable echo presentation even in rough seas

  • FURUNO Digital Filter delivers crystal clear target presentation

  • Furuno Free Synthesizer (FFS) allows for adjustable operating frequency

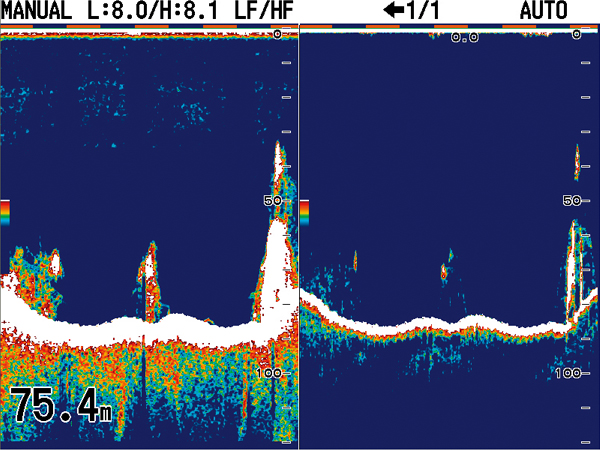

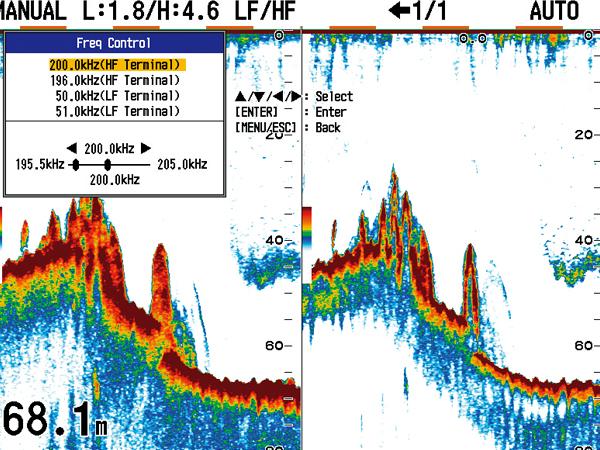

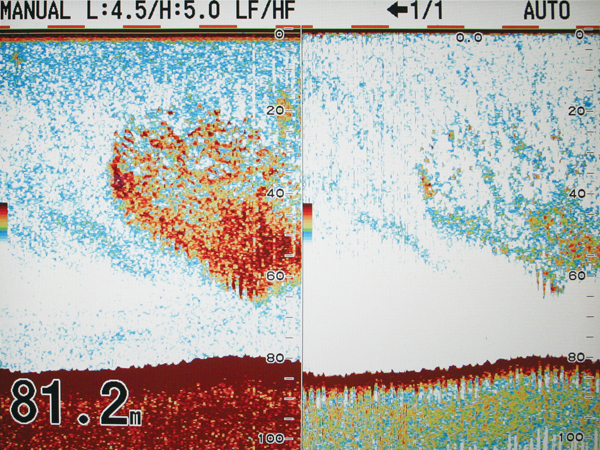

Screenshots

Specifications

DISPLAY

Display unit
12.1" TFT color LCD
Pixel number
800 × 600

FISH FINDER

Frequency
The synthesized transreceiver works with dual frequencies in 28 to 200 kHz
Transducer
1, 2 or 3 kW
Range Scale
5-3000 m
Pulselength & PRR
20-3000 pulse/min
Display Mode
Single (HF/LF), Dual, Single+Zoom, two Custom modes, Zoom mode (Bottom lock, Bottom zoom, Marker zoom), Mix mode, Nav data, A-scope

OTHERS

Waterproofing
IP55 (When flush mounted)
Power Supply
12-24 VDC: 3.3-1.7 A
100/110/220/230 VAC,
optional rectifier required
Size
345 (H) x 356 (W) x 199 (D)
Weight
Bracket Mount: 8.2 kg
Flush Mount: 6.8 kg

Equipment List

Standard

  • DISPLAY UNIT FCV-1150-E 1 UNIT
  • STANDARD SPARE PARTS, INSTALLATION MATERIALS,
    ACCESSORIES AND MANUALS     1 SET

Option

  • 1 KW TRANSDUCER 200B-5S (10 M)
    28F-8
    50B-6 (10 M)
    50B-6B (15 M)
    50B-9B
    88B-8
  • 2 KW TRANSDUCER 200B-8
    200B-8B
    28BL-6HR
    28F-18
    38BL-9HR
    50B-12
    50BL-12
    50BL-12HR
    82B-35R
    88B-10
  • 3 KW TRANSDUCER 28BL-12HR
    28F-24H
    38BL-15HR
    50BL-24H
    50BL-24HR
    50F-24H
    68F-30H
  • 5 KW
    TRANSDUCER     200B-12H
    88F-126H
  • DUAL FREQUENCY TRANSDUCER
    50/200-1T (RUBBER)     1 KW
  • 2P TWISTED PAIR CABLE 5M、10M、15M
  • SIGNAL CABLE ASSEMBLY 5M
  • ADAPTOR CABLE ASSY
  • THRU-HULL PIPE NO.4
    NO.5
    NO.6 (2 holes)
    NO.7 (2 holes)
    NO.11 (2 holes)
  • RECTIFIER (CHINA) PR-62
    (100 VAC/220 VAC)
  • SPEED/TEMPERATURE SENSOR
    ST-02MSB (USA)     10M
  • SPEED/TEMPERATURE SENSOR
    ST-02PSB (USA)     10M
  • TEMPERATURE SENSOR
    T-02MSB     10M
  • TEMPERATURE SENSOR
    T-02MTB     10M
  • TEMPERATURE SENSOR
    T-03MSB     10M

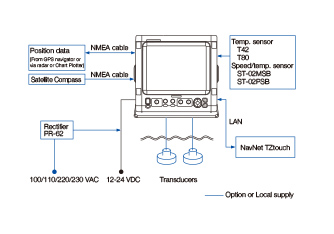

Interconnection Diagram

Documentation

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
