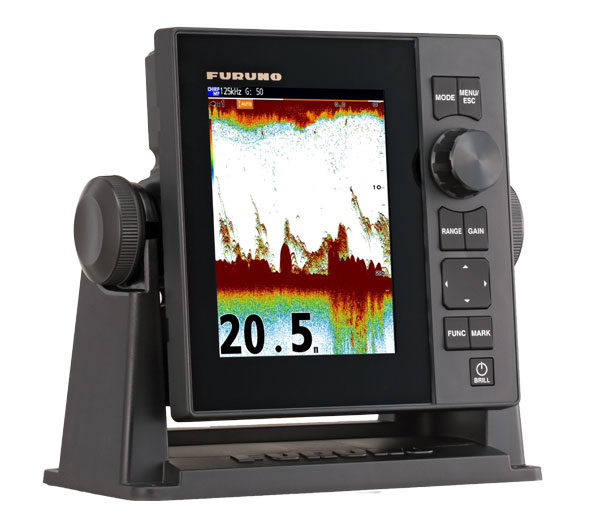

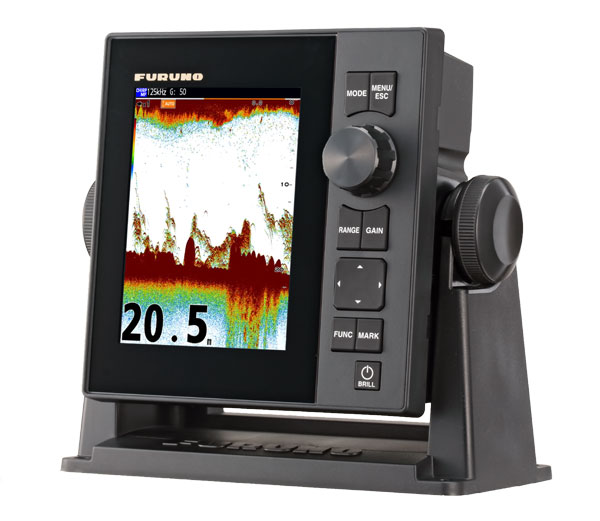

5.7" COLOR LCD FISH FINDER Model FCV-600

Features

• TruEcho CHIRP™

  Traditional CW (Continuous Wave) Fish Finders transmit a signal composed of a single frequency, while CHIRP Fish Finders transmit a linear frequencymodulated signal - a wave with a frequency that increases over time. The FCV-600 and FCV-800 can utilize a broadband transducer to transmit across a spectrum of frequencies, resulting in better target resolution. With Furuno’s TruEcho CHIRP™, you’ll see greater detail and target separation for baitfish, game fish, and structure.



• COLOR EXPANSION

  With Color Range Expansion, the range of identifiable echoes is expanded so you can intuitively identify bottom fish from the seabed. Reefs, structure, and fish near the seabed are shown in slightly separated colors, making it easy to tell structure from fish at a glance.



• NEW Colors

  Sunlight and Yellow color schemes offer enhanced visibility under bright sunlight conditions.





• WIRELESS CONNECTIVITY

  A second display can be installed to show the echoes and nav data from the FCV-600 and FCV-800 via wireless network, so you can monitor the underwater situation from the stern or bow while fishing.

  Remote Display by Apps

  The FCV-600/800 has a built-in Wireless LAN that allows you to display fish finder echoes on a smart phone or tablet device. The fish finder echoes can be viewed and operated by Android™ or iOS/iPadOS devices, even from a distance inboard. The compatible applications are listed in the table below.
  * When utilizing the TZ iBoat app and NavNet Viewer app, be sure to use FCV-600/800 software version V2.05 or later.
  Software Download

  	TZ iBoat	NavNet Viewer
  Compatible OS	iOS/iPadOS	Android™*
  Supported OS Version	14.2 or later	4.0.3 or later
  App Version	3.0.9 or later	1.0.12.8 or later
  Price	Download: Free of charge Fish Finder function: Charge (In-App Purchases)	Free of charge
  Download Apps	Download	Download
  App Download Manual	Please download from FCV-600 [Others [English]] on the Manual Download page.

  * The available applications differ depending on the device OS. Also, the fish finder echoes displayed on each application are slightly different from those displayed on the FCV-600/800.



Specifications

DISPLAY

Display unit

5.7" TFT color LCD

Pixel number

VGA 480 x 640

FISH FINDER

Frequency

CW: 50 and 200 kHz
CHIRP: 40 to 225 kHz

Transducer

300 W/600 W

Range Scale

2 - 1,200 m

Pulselength & PRR

0.04 to 3.0 ms, Max 3,000 pulse/min

Display Mode

Single Frequency, Dual-Frequency, Zoom, Nav Data, A-Scope, Marker Zoom, Bottom-Lock, Bottom Discrimination, Color Expand, ACCU-FISH™, RezBoost™

ACCU-FISH™

◯

Bottom Discrimination

◯

OTHERS

Waterproofing

IP56

Power Supply

12-24 VDC: 1.0 - 0.6 A

Size

210 (W) x 198 (H) x 120 (D) mm

Weight

1.3 kg (w/Bracket Mount)

Equipment List

Standard

• Display Unit With Bracket
  1 UNIT
• Installation Materials and Standard Spare Parts
  1 SET

Option

• CW TRANSDUCER (600 W) 520-5PSD, 520-5MSD, 520-PLD, 525-5PWD, 525STID-PWD, 525STID-MSD, 525T-PWD, 525T-BSD, 525T-LTD/12, 525T-LTD/20, SS60-SLTD/12, SS60-SLTD/20
• CHIRP TRANSDUCER (Single Frequency: 300 W) B75L, B150M, P95M, SS75L, TM150M
• CHIRP TRANSDUCER (Single Frequency: 600 W) B75H, B75HW, B75M, B785M, P75M, SS75H, SS75M, TM165HW
• SPEED/TEMPERATURE SENSOR ST-02MSB, ST-02PSB(USA), T-04MSB, T-04MTB
  Connector Kit for Connection of Speed & Temperature Sensor or Temperature Sensor
• Power Cable
• FLUSH MOUNT KIT OP02-89 - FCV-600

Drawing

Documentation

• FCV-600/FCV-800 Brochure
  (Last update: Apr 25, 2024)

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
