FISH FINDER Model FCV-1900

See underwater clearly and accurately with incredible high definition echoes

With a transmission rate that has been increased by up to 1.4 times (200m range), FCV-1900 ensures excellent target separation and clarity.

Fishing Vessels Workboats
FURUNO Digital Filter ACCU-FISH™ Auto Tuning (Sensitivity) Black Box

Related Contents

Features

  • Increased transmission rate for more details

    With a transmission rate that has been increased by up to1.4 times (200m range), FCV-1900 ensures excellent target separation and clarity.


  • Display up to four different frequencies

    Display up to four different frequencies together in a compact and easy way by connecting a required network fish finder. Since there is no need to install additional displays, this system is especially useful for small vessels.

  • Simultaneous gain setting for increased visibility

    Display two different gain settings simultaneously for increased visibility in changing water conditions and when changing vessel speed.

  • Zero Line Rejection

    Observe clear echoes from just 3 meters below your vessel with Zero Line Rejection, allowing you to better analyze the water column from near to far.

  • Capture and review videos and screenshots

    Now you can capture screenshots and video when dropping your net or when searching for fish. Captured screenshots and video display position* and time of capture, for simple review. Improve your fishing by comparing fish finder echoes with your resulting catches.

  • Improved control unit for simple and intuitive operation

    The control unit features a water resistant touch pad that works even when wearing rubber gloves. You can use the touch pad for setting up VRM and TLL in an instant.

  • Scroll back function

    With the press of a button you can activate the scroll back function to instantly review past echoes. Up to two previous screens can be viewed.

  • FURUNO Free Synthesizer transceiver for adjustable operating frequency

    Retrofitting is made easy. With FFS technology, you can easily replace an FCV-1200L processor unit while utilizing the same transducer for convenient installation.

  • Upgrade to FCV-1900B Hi-Res Fish Finder or FCV-1900G Fish size indicator

    By purchasing and installing a software license, you can upgrade your FCV-1900 model to a FCV-1900B Hi-Res TruEcho CHIRP™ Fish Finder* or a FCV-1900G TruEcho CHIRP™ with unique fish size indicator*. FCV-1900G offers a precise fish size histogram for accurate estimation of fish size and density of schools of fish. With fish size histogram, targets can be properly evaluated, spelling increased efficiency and profitability. For further details, please contact your local FURUNO national distributor.

    *TruEcho CHIRP™ compatible transducer required.



Screenshots

Specifications

DISPLAY

Pixel number
Landscape XGA (1024 x 768)
Landscape SXGA (1280 x 1024)
Landscape FHD (1920 x 1080)
Portrait SXGA (1024 x 1280)

FISH FINDER

Frequency
15 kHz to 200 kHz, Free Syntheziser
Transducer
1, 2 or 3 kW
Range Scale
Depth range : 5 to 3000 m
Expansion range : 2 to 200 m
Pulselength & PRR
10 to 2700 pulses/min (5 to 3000 m range, normal mode)
Display Mode
Single mode (high/low frequency), Dual-frequency, Zoom, User 1/2
User 1/2 available to use mixture, multi-gain, telesounder and external
sounder display
Range Shift
2000 m max.
ACCU-FISH™
2 m depth or more, specified transducer required
Bottom Discrimination
Range : 5 to 100 m, Speed : 10 kn or less, BBDS1 required

OTHERS

Power Supply
12-24 VDC : 8.3-3.9 A
Size
Processor Unit : 339 (H) x 280 (W) x 300 (D)
Control Unit : 45 (H) x 310 (W) x 100 (D)
Weight
Processor Unit : 10.2 kg
Control Unit : 1.1 kg

Equipment List

Standard

  • PROCESSOR UNIT (FCV-1901) 1 UNIT
  • CONTROL UNIT (FCV-1902) 1 UNIT
  • INSTALLATION MATERIALS 1 SET
  • SPARE PARTS 1 SET

Option

  • TRANSDUCER
  • INTERFACE UNIT FCV-1903
  • ETHERNET HUB HUB-101/HUB-102
  • JUNCTION BOX RJB-002
  • BOOSTER BOX BT-5-1/2
  • TEMPERATURE SENSOR T-04MSB
    T-04MTB
  • AC/DC POWER SUPPLY UNIT PR-240
  • RECTIFIER RU-1746B-2
  • INSTALLATION MATERIAL
  • CABLE ASSEMBLY
  • CABLE (FOR TRANSDUCER EXTENSION)

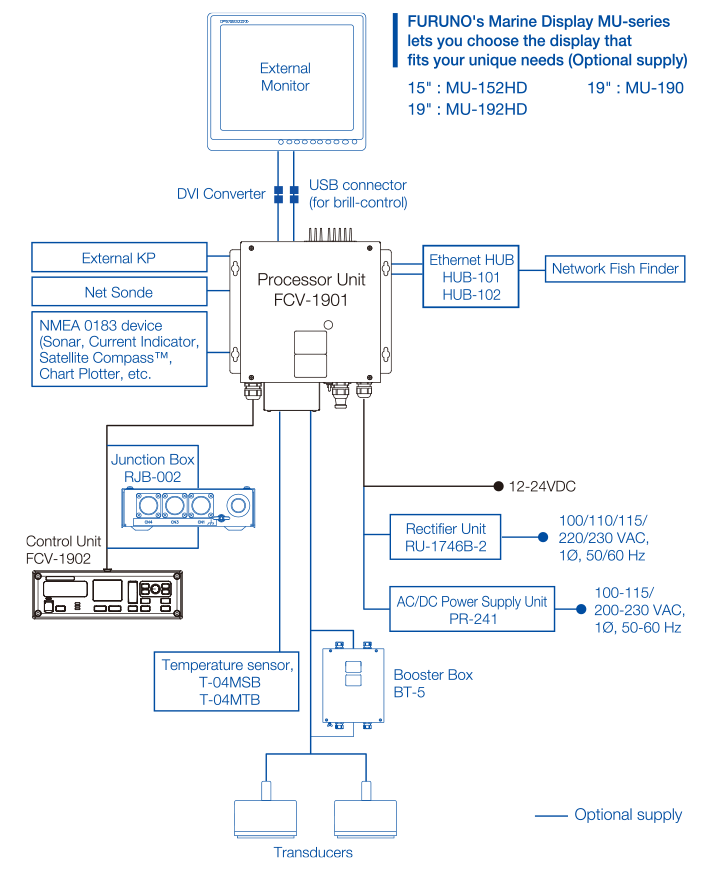

Interconnection Diagram

Documentation

  • FCV-1900 Brochure
    (Last update: Sep 19, 2024)

Contact

Locate a Distributor Contact a local distributor for further details.

* Specifications subject to change without notice.
