Clinical Chemistry Analyzer Model CA-800

800 tests/hour throughput capability (maximum 1200 tests/hour with ISE). Fully direct automatic HbA1c measurement without manual sample pretreatment.
Optional rack system available for place and go sample process.

Floor model analyzer with throughput of maximum 800 tests/hour (1200 tests/hour with ISE) combined with minimum reaction volume of 50ul. User-friendly interface on a touch screen display provides a new solution to your laboratory. Also, connection with sample transfer line is possible.

Features

New Definition of Precision
Comprehensive solution to high complex demand

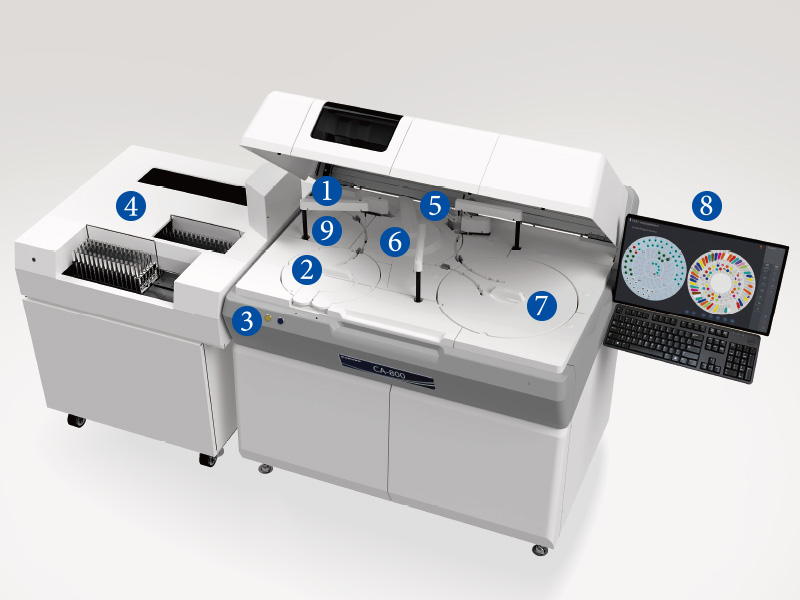

- - Sample Probe
    High precision adjustable sample clot detection
    Minimum sample volume of 0.5 μl, lowest of its class
  - Sample Tray
    Double rotation sample tray for on the fly STAT samples
  - Sample Addition
    "Stop" and "Go" buttons for simple sample addition
  - Rack Handler
    Intelligent automatic rack system for seamless sample processing
    Easy and quick rack loading/collection by rack basket
  - Wash Unit
    Minimum water usage with high quality test result
  - Cuvette
    Lowest reagent volume requirement of its class
  - Reagent Tray
    10 fully independent reagent racks make reagent loading hassle-free
  - User Interface
    Simple touch operation allows quick access to each function
    Effective color coding for easy status identification
    Comprehensive test result data for in depth analysis
  - Integrated ISE Module (Optional)
    Measurement of Na, K and Cl
    Throughput of 600 tests/hour
  ◆HbA1c Measurement
  Simple, fast and accurate HbA1c measurement by onboard sample pretreatment.
User Friendly Interface
Intuitive GUI provides fast and simple operation for any level of operator.
- High operability with easy-to-understand layout
- Effective use of informative graphics and charts
- Comprehensive assessment of analyzer condition

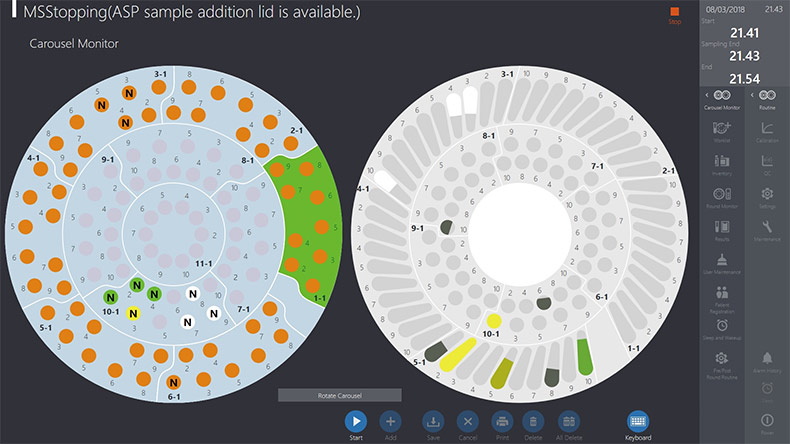

- Run-Monitor
  Visually shows sample status.

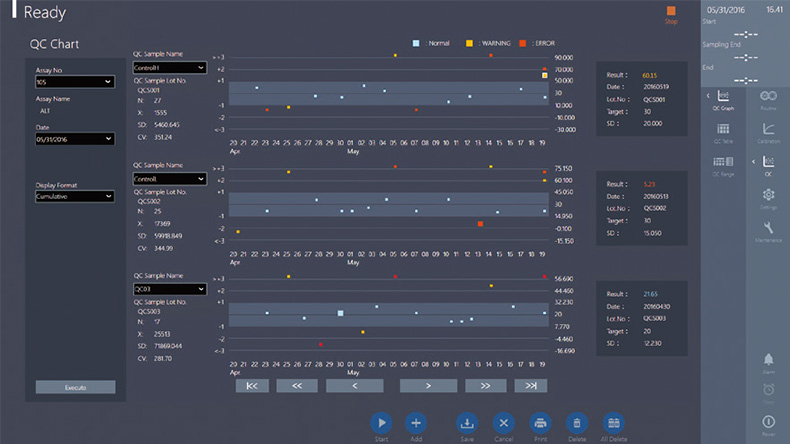

- Quallity Control(QC)
  Displays QC results in various formats.

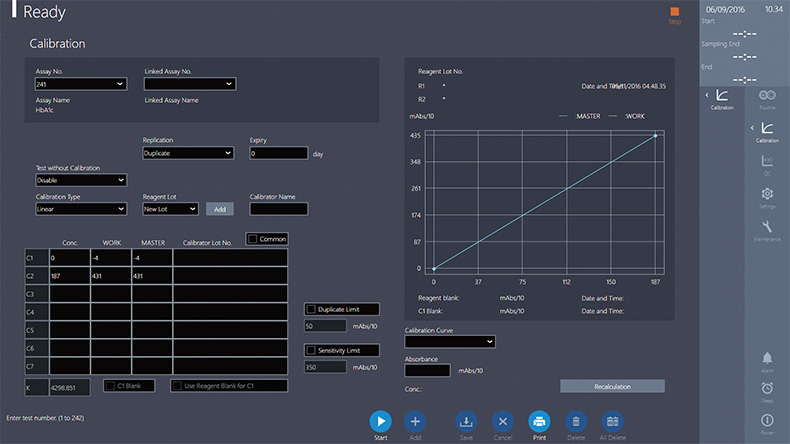

- Callibration
  Manages calibration settings and calibration curves on one screen.

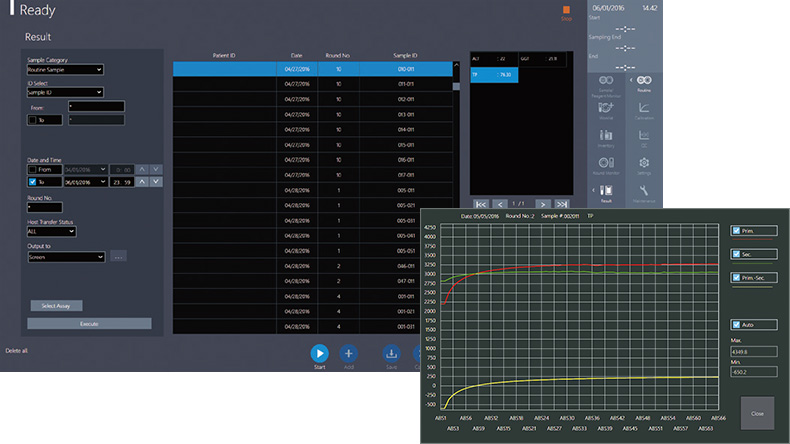

- Results
  Results can be displayed, printed out, or saved as electronic files.

Specifications

GENERAL

Type: Fully automated clinical chemistry analyzer
Usage: General chemistry as photometric assay
Immunology as photometric assay (Latex reagents available)
Assay type: End point, 2 point end, rate, 2 point rate and electrolytes
Throughput: 800 tests per hour (Up to 1200 tests per hour with optional ISE module)
Incubation time: 10 minutes after applying sample for one-reagent assay
5 minutes after applying second reagent for two-reagent assay
Sample type: Serum, plasma and urine
Sample input system: Type:
Removable tray with sample tube holder on a turntable

Capacity:
Up to 94 samples (handling of STAT available)

QC sample and Calibrator:
10 positions on designated inner tray
Sampling pipette: Type:
Micro pipette with liquid level detector and clot detector

Rinsing:
Inside and outside with purified water
Sampling pump: Type:
Micro syringe

Volume:
0.5 to 25.0 μl (increment by 0.1 μl)
Reagent system: Type:
Removable tray with reagent bottle holder on a turntable

Capacity:
100 reagent positions on a tray (50 each for 70 ml and 20 ml bottles)

Inventory:
Calculation of remaining reagent volume available

Cooling:
Cooling with peltier element (8 to 15 degrees Celsius)
Reagent pipette: Numbers of pipettors:
2

Type:
Micro pipette with liquid level detector

Rinsing:
Inside and outside with purified water

Other function:
Detection of remaining reagent volume available
Reagent pump: Type:
Micro syringe

R1 Volume:
20 to 250 μl (increment by 1 μl)

R2 Volume:
5 to 180 μl (increment by 1 μl)
Cuvette system: Number of cuvettes:
153 cuvettes on reaction line

Type:
Semi-disposable cuvette with onboard washing system

Material:
Resin or glass

Volume for measurement:
Minimum 50 μl

Maximum volume:
250 μl in total
Reaction system: Type:
Direct heating system

Temperature:
37.0 degrees Celsius (+/- 0.2)
Detector: Method:
Direct measurement of absorbance in cuvette
Bi-chromatic or Mono-chromatic

Wavelength:
340 nm, 380 nm, 415 nm, 450 nm, 478 nm, 510 nm, 546 nm, 570 nm, 600 nm, 660 nm, 700 nm, 750 nm, 800 nm (13 wavelengths)

Light source:
Halogen tungsten lamp
Stirring system: Type:
Stick type rotating stirrer
Dimensions: 1,300 mm (W) x 850 mm (D) x 1,150 mm (H) (Analyzer only)
Option: ISE module, glass cuvette
Rack Handler (Option): Model Name:
RH-150

Sample Rack:
5 sample rack

Loading sample:
150 samples

Dimensions:
Outside dimensions:890 mm (W) x 850 mm (D) x 924 mm (H)

Rack handler for CA-800

The RH-150 is a rack handler designed to meet the needs of large laboratories with a high number of tests. It significantly reduces the time and energy required for manual labor and allows a greater number of inspections to be performed in a shorter time, improving overall operational efficiency. Based on customer needs, there are options to purchase either the device alone or the device with a rack handler.

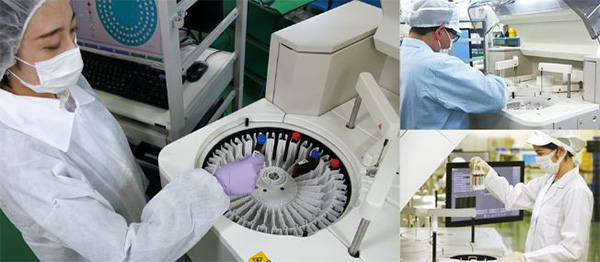

Reagents for clinical chemistry

Reagents designed for automatic chemistry analyzer and optimised chemistry parameters offer the precise and reliable data to the laboratory.

Reagents
Clinical chemistry reagents, Immunoturbidimetric reagents
Calibrators
Clinical chemistry calibrator, Immunoturbidimetric calibrator
Quality control samples
Clinical chemistry quality control sample, Immunoturbidimetric quality control sample
Utility reagent
Analyzer consumables

More details

Furuno Clinical Chemistry Analyzer

We provide extensive support to our customers based on our extensive knowwledge of both reagents and instruments.

MODEL	Features
CA-270	Compact desk-top instrument with 270 test/hour (maximum 450 tests/hour with ISE). > 8 key points in the CA-270 (document download)
CA-400	Mid-range desk-top instrument with 400 test/hour (maximum 560 tests/hour with ISE).
CA-800	800 tests/hour throughput capability (maximum 1200 tests/hour with ISE).

Registered CA series in UNIDO's STePP

Furuno's CA series has been registered in STePP by UNIDO (United Nations Industrial Development Organization), Tokyo Office.

The STePP (Sustainable Technology Promotion Platform) is an online database to introduce outstanding Japanese technologies for sustainable industrial development in developing and emerging countries. In this STePP, Furuno's CA-series was evaluated as a product that contributes to achieving the goals of SDGs 3 [Good health and well-being] and 9 [Industry, innovation and infrastructure].
